HMC996LP4E

HMC996LP4E Overview

Product belongs to the HMC996 series. Type: RF Amplifier Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SMT-24 This product's 5GHz ~ 12GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 5 GHz to 12 GHz Number of channels: 1 Channel Voltage Supply Range: 5V Supplier device package: 24-QFN (4x4) This product has a 120mA of 200μA. The device offers a 18.5dB of 26dB. The amplifier is of Variable Gain type. Test-Frequency is -. P1dB is 23dBm RF-Type: General Purpose Power-off control: 1.03 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 120 mA is 92 nA. The operating frequency is 12 GHz. NF-Noise-Figure is 2 dB 34 dBm OIP3 third-order intercept The 17 dB is 12 dB.

HMC996LP4E Image

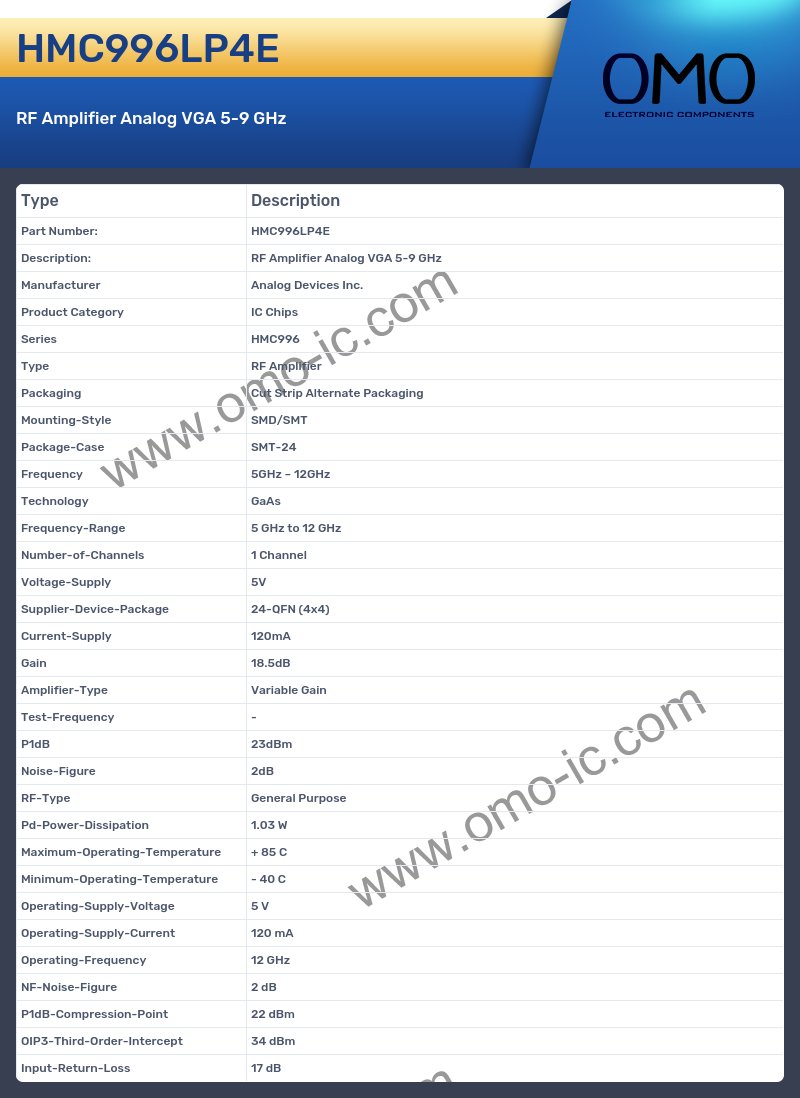

HMC996LP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series HMC996
• Type RF Amplifier
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SMT-24
• Frequency 5GHz ~ 12GHz
• Technology GaAs
• Frequency-Range 5 GHz to 12 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 5V
• Supplier-Device-Package 24-QFN (4x4)
• Current-Supply 120mA
• Gain 18.5dB
• Amplifier-Type Variable Gain
• Test-Frequency -
• P1dB 23dBm
• Noise-Figure 2dB
• RF-Type General Purpose
• Pd-Power-Dissipation 1.03 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 120 mA
• Operating-Frequency 12 GHz
• NF-Noise-Figure 2 dB
• P1dB-Compression-Point 22 dBm
• OIP3-Third-Order-Intercept 34 dBm
• Input-Return-Loss 17 dB
