HMC742ALP5ETR

HMC742ALP5ETR Overview

Product belongs to the HMC742A series. Type: MMIC Variable Gain Amplifier Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006653 oz SMD/SMT Mounting-Style QFN-32 This product's 70MHz ~ 4GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 70 MHz to 4 GHz Number of channels: 1 Channel Voltage Supply Range: 5V Supplier device package: 32-QFN (5x5) This product has a 2.5mA of 200μA. The device offers a 12dB of 26dB. The amplifier is of RF Amplifier type. Test-Frequency is 70MHz ~ 1GHz. P1dB is 21.5dBm RF-Type: LTE, WiMax Power-off control: 860 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 2.5 mA is 92 nA. The operating frequency is 70 MHz to 4 GHz. NF-Noise-Figure is 4.5 dB 39 dBm OIP3 third-order intercept The 12 dB is 12 dB.

HMC742ALP5ETR Image

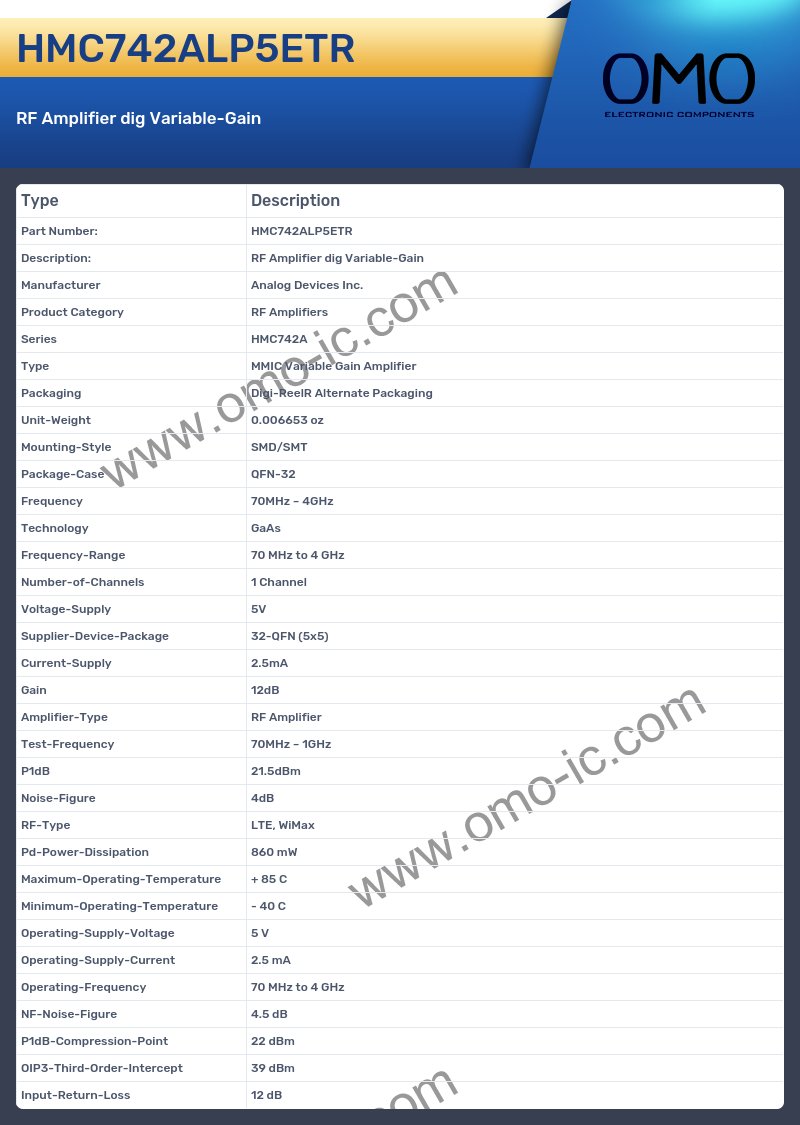

HMC742ALP5ETR Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC742A
• Type MMIC Variable Gain Amplifier
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006653 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-32
• Frequency 70MHz ~ 4GHz
• Technology GaAs
• Frequency-Range 70 MHz to 4 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 5V
• Supplier-Device-Package 32-QFN (5x5)
• Current-Supply 2.5mA
• Gain 12dB
• Amplifier-Type RF Amplifier
• Test-Frequency 70MHz ~ 1GHz
• P1dB 21.5dBm
• Noise-Figure 4dB
• RF-Type LTE, WiMax
• Pd-Power-Dissipation 860 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 2.5 mA
• Operating-Frequency 70 MHz to 4 GHz
• NF-Noise-Figure 4.5 dB
• P1dB-Compression-Point 22 dBm
• OIP3-Third-Order-Intercept 39 dBm
• Input-Return-Loss 12 dB
