HMC709LC5

HMC709LC5 Overview

Product belongs to the HMC709 series. This product is categorized as Up Converters Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 32-TFQFN Exposed Pad This product's 11GHz ~ 17GHZ range is 0Hz to 2.2GHz. GaAs is the technology used. Product function is Upconverter. Supplier device package: 32-SMT (5x5) The device offers a 13 dB of 26dB. RF-Type: Radar Power-off control: 1.65 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C This product operates at a 5 V supply voltage for reliable performance. 105 mA 127 mA is 92 nA. IF-Frequency: DC to 3.75 GHz

HMC709LC5 Image

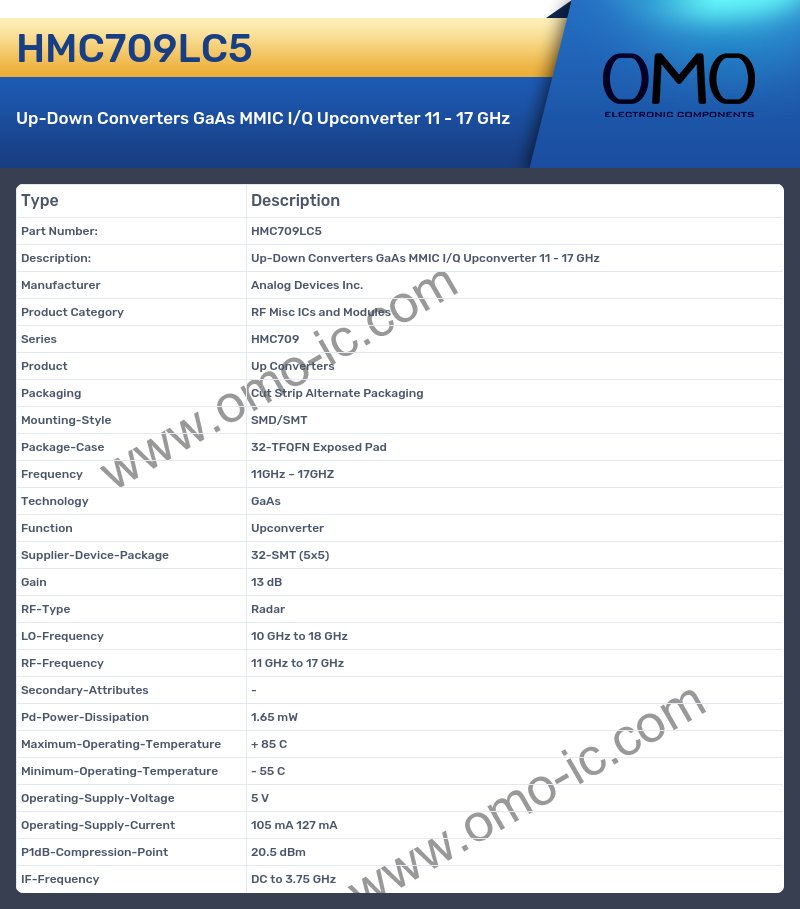

HMC709LC5 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Misc ICs and Modules
• Series HMC709
• Product Up Converters
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 32-TFQFN Exposed Pad
• Frequency 11GHz ~ 17GHZ
• Technology GaAs
• Function Upconverter
• Supplier-Device-Package 32-SMT (5x5)
• Gain 13 dB
• RF-Type Radar
• LO-Frequency 10 GHz to 18 GHz
• RF-Frequency 11 GHz to 17 GHz
• Secondary-Attributes -
• Pd-Power-Dissipation 1.65 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 105 mA 127 mA
• P1dB-Compression-Point 20.5 dBm
• IF-Frequency DC to 3.75 GHz
