HMC689LP4E

HMC689LP4E Overview

Product belongs to the HMC689 series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 This product's 2GHz ~ 2.7GHz range is 0Hz to 2.2GHz. Silicon is the technology used. Product function is -. Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 24-QFN (4x4) This product has a 152mA of 200μA. The device offers a - of 26dB. RF-Type: LTE, WiMax Mixer count: 1 Power-off control: 1.45 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 152 mA is 92 nA. NF-Noise-Figure is 7.5 dB Conversion loss of up to 11 dB maximum

HMC689LP4E Image

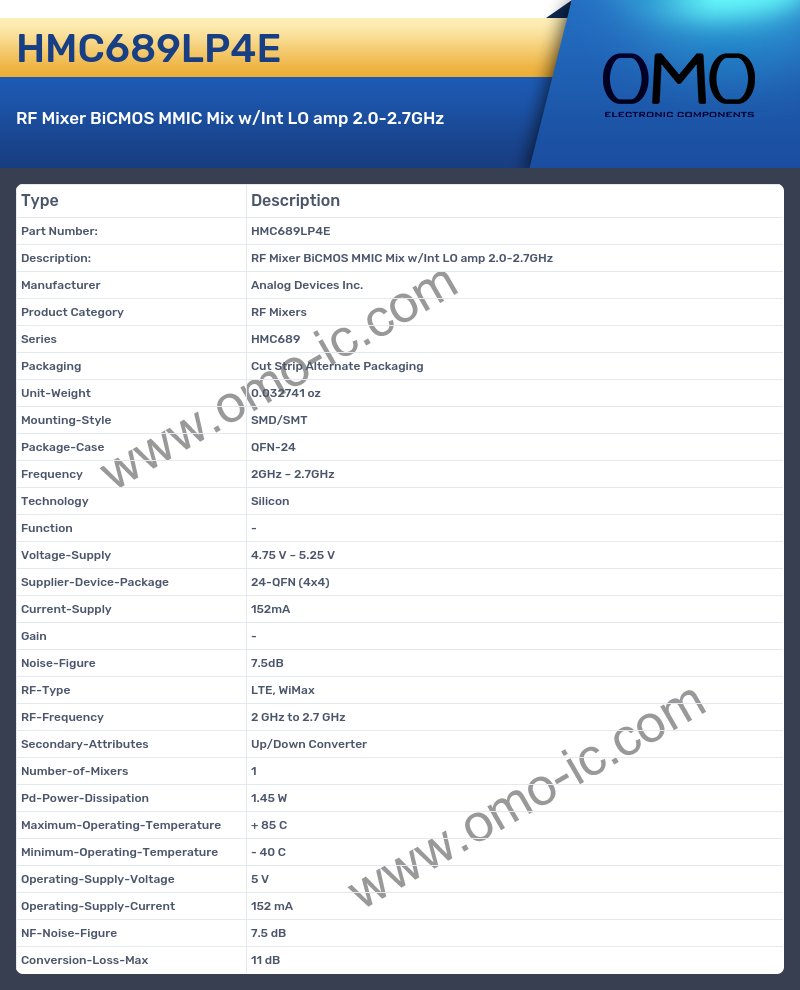

HMC689LP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Mixers
• Series HMC689
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Frequency 2GHz ~ 2.7GHz
• Technology Silicon
• Function -
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 24-QFN (4x4)
• Current-Supply 152mA
• Gain -
• Noise-Figure 7.5dB
• RF-Type LTE, WiMax
• RF-Frequency 2 GHz to 2.7 GHz
• Secondary-Attributes Up/Down Converter
• Number-of-Mixers 1
• Pd-Power-Dissipation 1.45 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 152 mA
• NF-Noise-Figure 7.5 dB
• Conversion-Loss-Max 11 dB
