HMC686LP4E

HMC686LP4E Overview

Product belongs to the HMC686 series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 This product's 700MHz ~ 1.5GHz range is 0Hz to 2.2GHz. Silicon is the technology used. Product function is -. Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 24-QFN (4x4) This product has a 105mA of 200μA. The device offers a - of 26dB. RF-Type: LTE, WiMax Mixer count: 1 Power-off control: 0.76 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 105 mA is 92 nA. NF-Noise-Figure is 8 dB Conversion loss of up to 10 dB maximum

HMC686LP4E Image

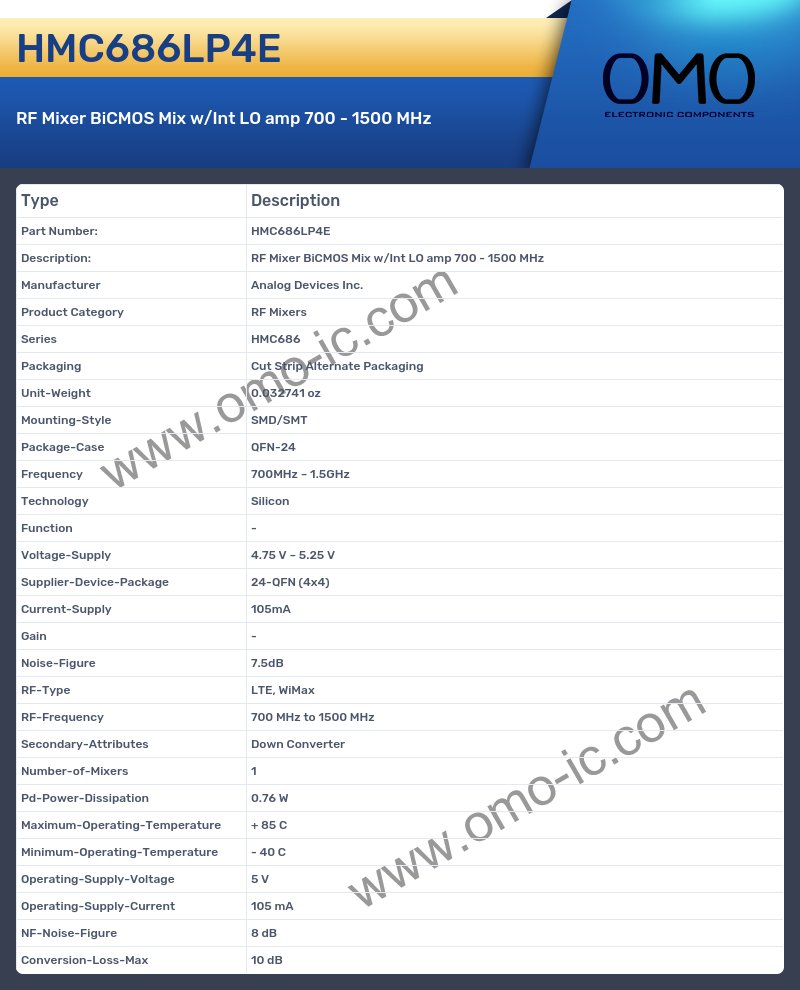

HMC686LP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Mixers
• Series HMC686
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Frequency 700MHz ~ 1.5GHz
• Technology Silicon
• Function -
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 24-QFN (4x4)
• Current-Supply 105mA
• Gain -
• Noise-Figure 7.5dB
• RF-Type LTE, WiMax
• RF-Frequency 700 MHz to 1500 MHz
• Secondary-Attributes Down Converter
• Number-of-Mixers 1
• Pd-Power-Dissipation 0.76 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 105 mA
• NF-Noise-Figure 8 dB
• Conversion-Loss-Max 10 dB
