HMC641ALP4E

HMC641ALP4E Overview

Product belongs to the HMC641AG series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 24-SMT (4x4) Circuit type: SP4T Topology: Absorptive feedback P1dB is 24dBm RF-Type: VSAT Frequency upper limit of 20GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SP4T 1.7 mA is 92 nA. The operating frequency is 20 GHz. Maximum supply voltage of - 5.5 V Minimum supply voltage is - 4.5 V Maximum off time: 100 ns Quad switch functionality Attribute: High-Control-Voltage, Value: - 5 V to - 3.8 V Maximum on-time: 100 ns The 45 dB of this product is 35 dB.

HMC641ALP4E Image

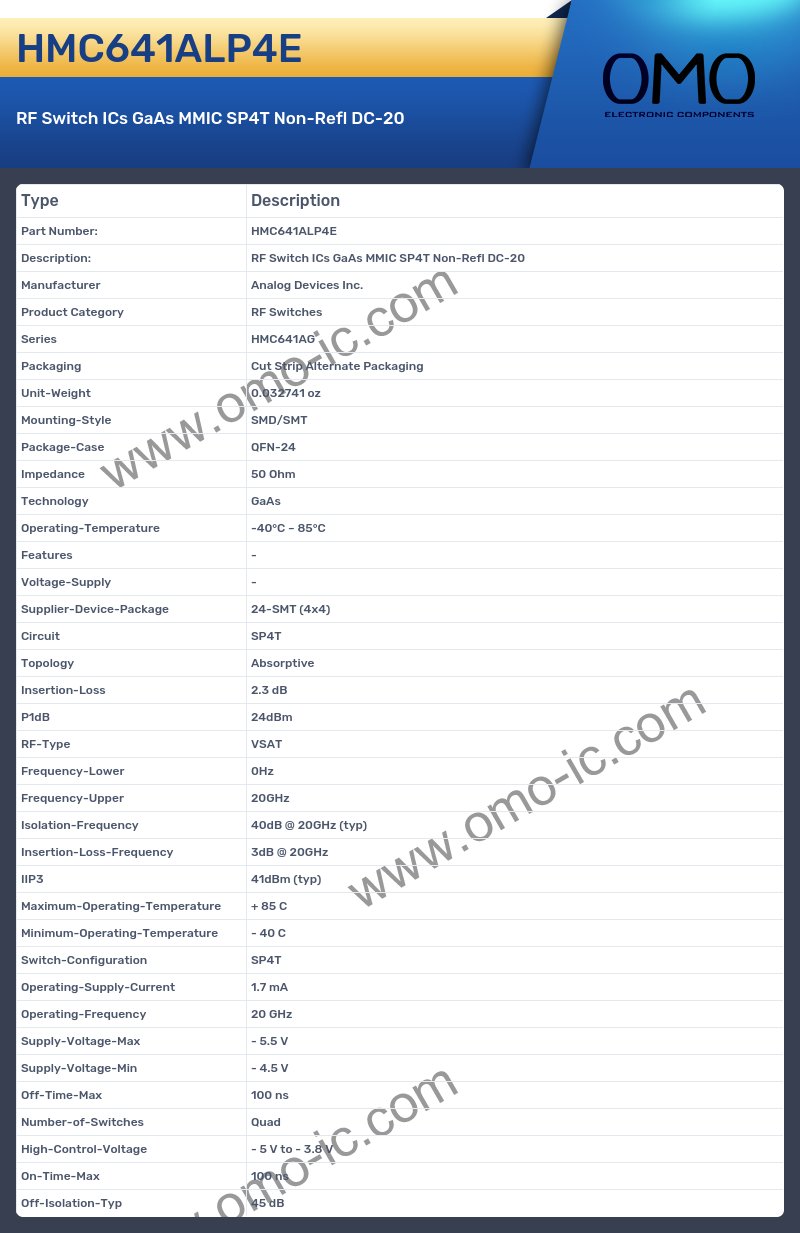

HMC641ALP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC641AG
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 24-SMT (4x4)
• Circuit SP4T
• Topology Absorptive
• Insertion-Loss 2.3 dB
• P1dB 24dBm
• RF-Type VSAT
• Frequency-Lower 0Hz
• Frequency-Upper 20GHz
• Isolation-Frequency 40dB @ 20GHz (typ)
• Insertion-Loss-Frequency 3dB @ 20GHz
• IIP3 41dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SP4T
• Operating-Supply-Current 1.7 mA
• Operating-Frequency 20 GHz
• Supply-Voltage-Max - 5.5 V
• Supply-Voltage-Min - 4.5 V
• Off-Time-Max 100 ns
• Number-of-Switches Quad
• High-Control-Voltage - 5 V to - 3.8 V
• On-Time-Max 100 ns
• Off-Isolation-Typ 45 dB
