HMC596LP4

HMC596LP4 Overview

Product belongs to the HMC596 series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 Impedance value is 50 Ohm Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 5V Supplier device package: 24-QFN (4x4) Circuit type: - Topology: - feedback P1dB is 22dBm RF-Type: Cellular Frequency upper limit of 3GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 200 uA is 92 nA. The operating frequency is 0.2 GHz to 3 GHz. Maximum supply voltage of 5 V The 40 dB of this product is 35 dB.

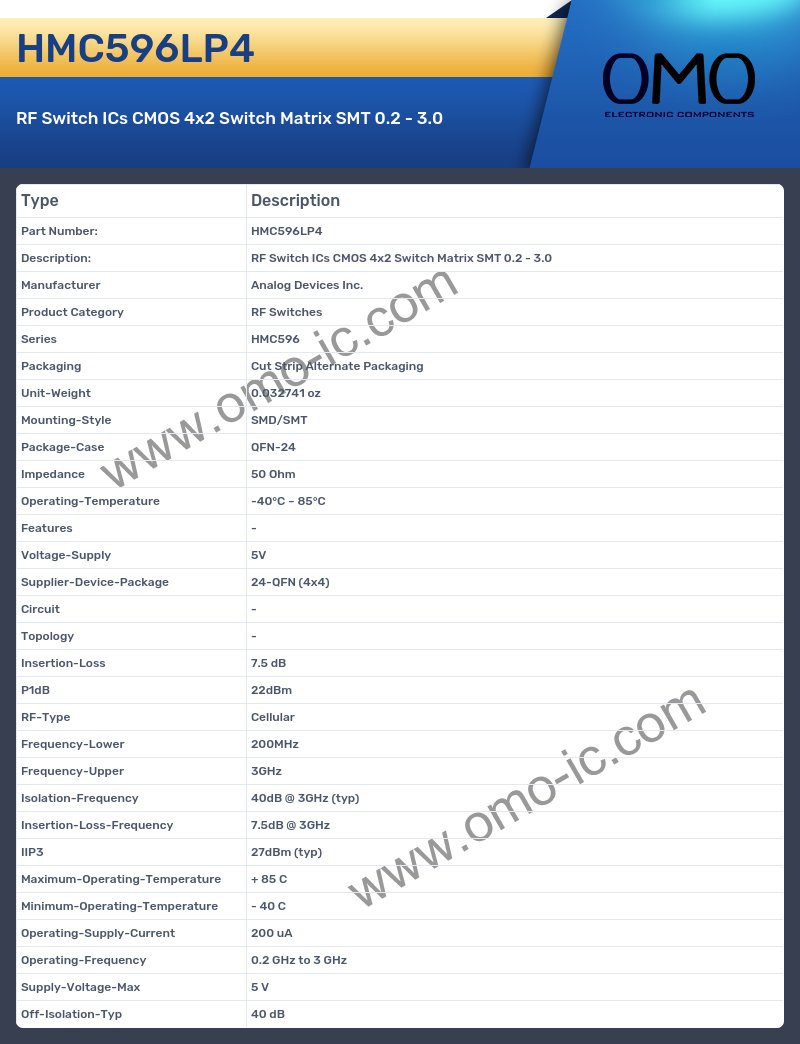

HMC596LP4 Image

HMC596LP4 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC596
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Impedance 50 Ohm
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 5V
• Supplier-Device-Package 24-QFN (4x4)
• Circuit -
• Topology -
• Insertion-Loss 7.5 dB
• P1dB 22dBm
• RF-Type Cellular
• Frequency-Lower 200MHz
• Frequency-Upper 3GHz
• Isolation-Frequency 40dB @ 3GHz (typ)
• Insertion-Loss-Frequency 7.5dB @ 3GHz
• IIP3 27dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 200 uA
• Operating-Frequency 0.2 GHz to 3 GHz
• Supply-Voltage-Max 5 V
• Off-Isolation-Typ 40 dB
