HMC574MS8ETR

HMC574MS8ETR Overview

Product belongs to the HMC574 series. Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style MSOP-8 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 3 V ~ 8 V Supplier device package: 8-MSOP Circuit type: SPDT Topology: Reflective feedback P1dB is 39dBm (typ) IP1dB RF-Type: Cellular, WLAN Frequency upper limit of 3GHz Power-off control: 0.65 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT 40 uA is 92 nA. The operating frequency is DC to 3 GHz. Maximum supply voltage of 8 V Minimum supply voltage is 3 V Single switch functionality Attribute: High-Control-Voltage, Value: 2 V The 20 dB of this product is 35 dB.

HMC574MS8ETR Image

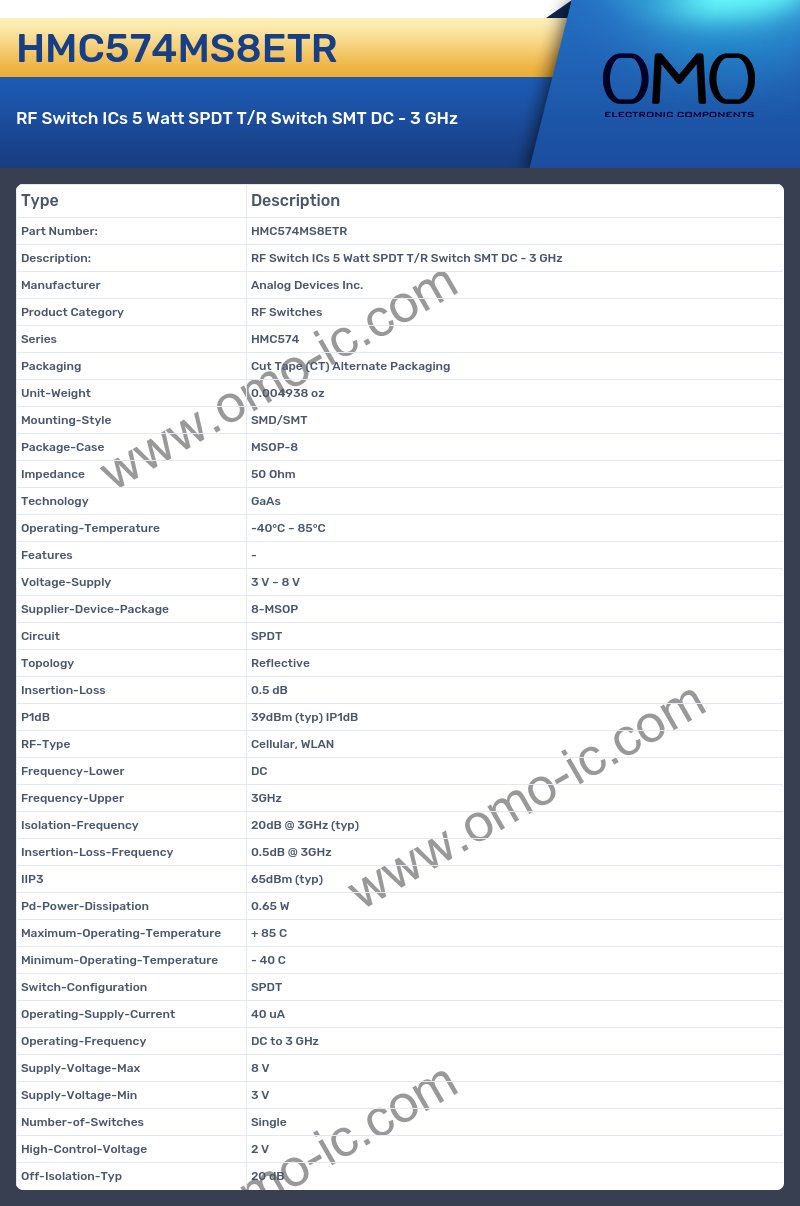

HMC574MS8ETR Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC574
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 3 V ~ 8 V
• Supplier-Device-Package 8-MSOP
• Circuit SPDT
• Topology Reflective
• Insertion-Loss 0.5 dB
• P1dB 39dBm (typ) IP1dB
• RF-Type Cellular, WLAN
• Frequency-Lower DC
• Frequency-Upper 3GHz
• Isolation-Frequency 20dB @ 3GHz (typ)
• Insertion-Loss-Frequency 0.5dB @ 3GHz
• IIP3 65dBm (typ)
• Pd-Power-Dissipation 0.65 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Supply-Current 40 uA
• Operating-Frequency DC to 3 GHz
• Supply-Voltage-Max 8 V
• Supply-Voltage-Min 3 V
• Number-of-Switches Single
• High-Control-Voltage 2 V
• Off-Isolation-Typ 20 dB
