HMC550AE

HMC550AE Overview

Product belongs to the HMC550AG series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-26-6 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 3.3V Supplier device package: SOT-26 Circuit type: SPST Topology: Reflective feedback P1dB is 32dBm RF-Type: WiMAX / WiBro Frequency upper limit of 6GHz Power-off control: 360 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPST The operating frequency is DC to 6 GHz. Maximum supply voltage of 5 V Minimum supply voltage is 1.2 V Maximum off time: 30 ns Single switch functionality Attribute: High-Control-Voltage, Value: 5 V Maximum on-time: 30 ns The 12 dB of this product is 35 dB.

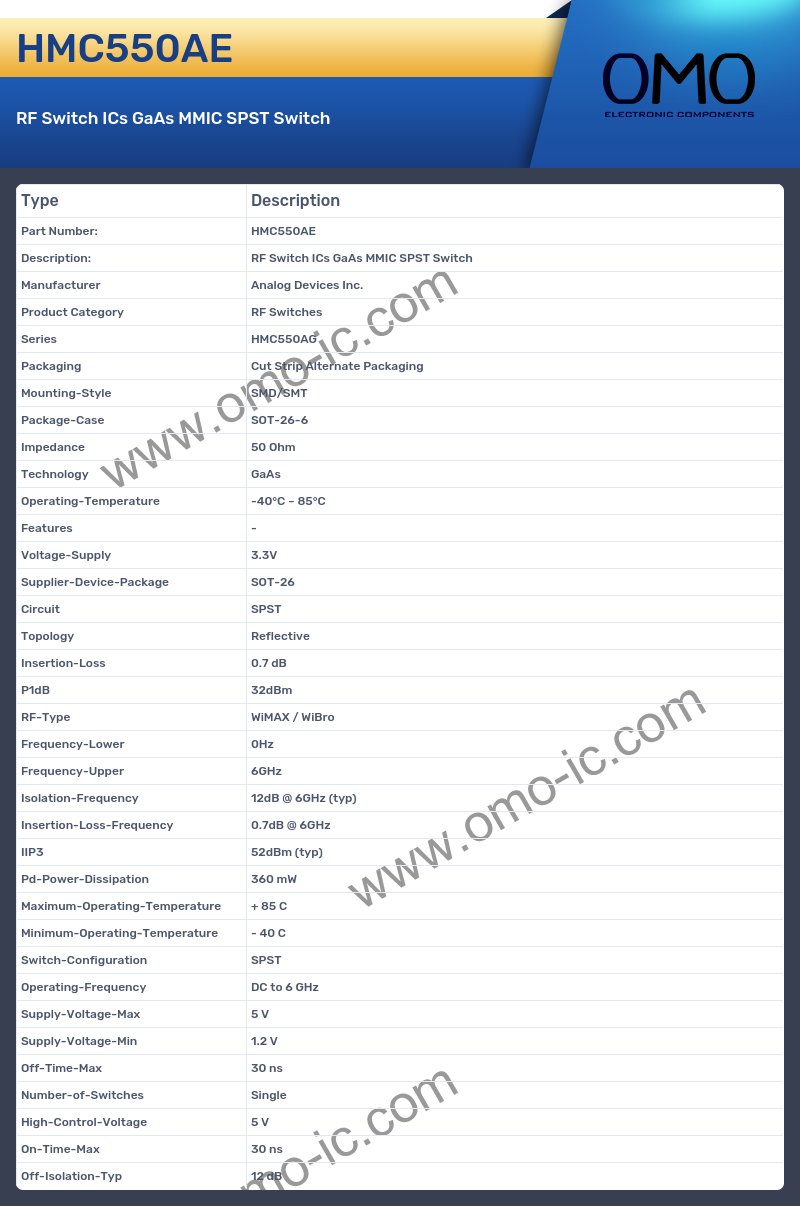

HMC550AE Image

HMC550AE Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC550AG
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-26-6
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 3.3V
• Supplier-Device-Package SOT-26
• Circuit SPST
• Topology Reflective
• Insertion-Loss 0.7 dB
• P1dB 32dBm
• RF-Type WiMAX / WiBro
• Frequency-Lower 0Hz
• Frequency-Upper 6GHz
• Isolation-Frequency 12dB @ 6GHz (typ)
• Insertion-Loss-Frequency 0.7dB @ 6GHz
• IIP3 52dBm (typ)
• Pd-Power-Dissipation 360 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPST
• Operating-Frequency DC to 6 GHz
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 1.2 V
• Off-Time-Max 30 ns
• Number-of-Switches Single
• High-Control-Voltage 5 V
• On-Time-Max 30 ns
• Off-Isolation-Typ 12 dB
