HMC549MS8G

HMC549MS8G Overview

Product belongs to the HMC549 series. Type: Low Noise Amplifier Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style MSOP-8 This product's 40MHz ~ 960MHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 0.04 GHz to 0.96 GHz Number of channels: 1 Channel Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-MSOPG This product has a 120mA of 200μA. The device offers a 5dB of 26dB. Test-Frequency is -. P1dB is 12.5dBm RF-Type: General Purpose Power-off control: 1.32 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 120 mA is 92 nA. The operating frequency is 0.04 GHz to 0.96 GHz. NF-Noise-Figure is 3.5 dB 27 dBm OIP3 third-order intercept The 8 dB is 12 dB.

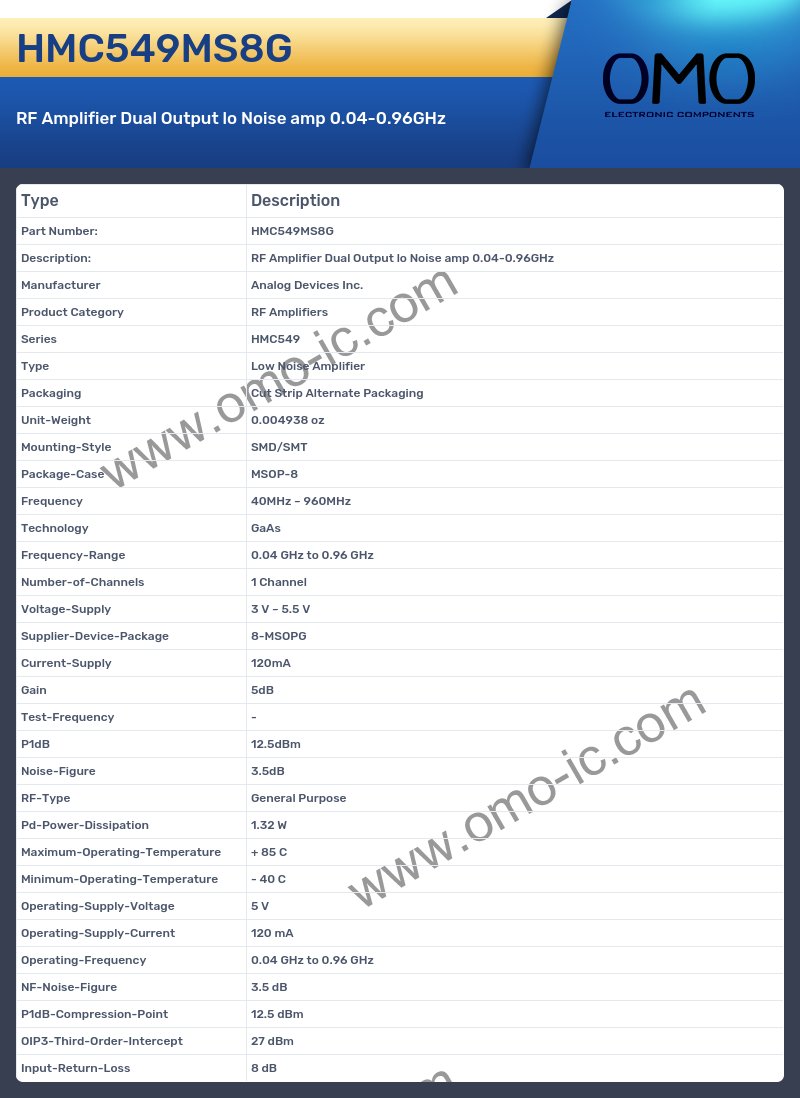

HMC549MS8G Image

HMC549MS8G Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC549
• Type Low Noise Amplifier
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Frequency 40MHz ~ 960MHz
• Technology GaAs
• Frequency-Range 0.04 GHz to 0.96 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 8-MSOPG
• Current-Supply 120mA
• Gain 5dB
• Test-Frequency -
• P1dB 12.5dBm
• Noise-Figure 3.5dB
• RF-Type General Purpose
• Pd-Power-Dissipation 1.32 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 120 mA
• Operating-Frequency 0.04 GHz to 0.96 GHz
• NF-Noise-Figure 3.5 dB
• P1dB-Compression-Point 12.5 dBm
• OIP3-Third-Order-Intercept 27 dBm
• Input-Return-Loss 8 dB
