HMC547LP3ETR

HMC547LP3ETR Overview

Product belongs to the HMC547 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002014 oz SMD/SMT Mounting-Style QFN-16 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 16-QFN (3x3) Circuit type: SPDT Topology: Absorptive feedback P1dB is 23dBm (typ) IP1dB RF-Type: General Purpose Frequency upper limit of 20GHz Power-off control: 0.26 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 20 GHz. Dual switch functionality The 38 dB of this product is 35 dB.

HMC547LP3ETR Image

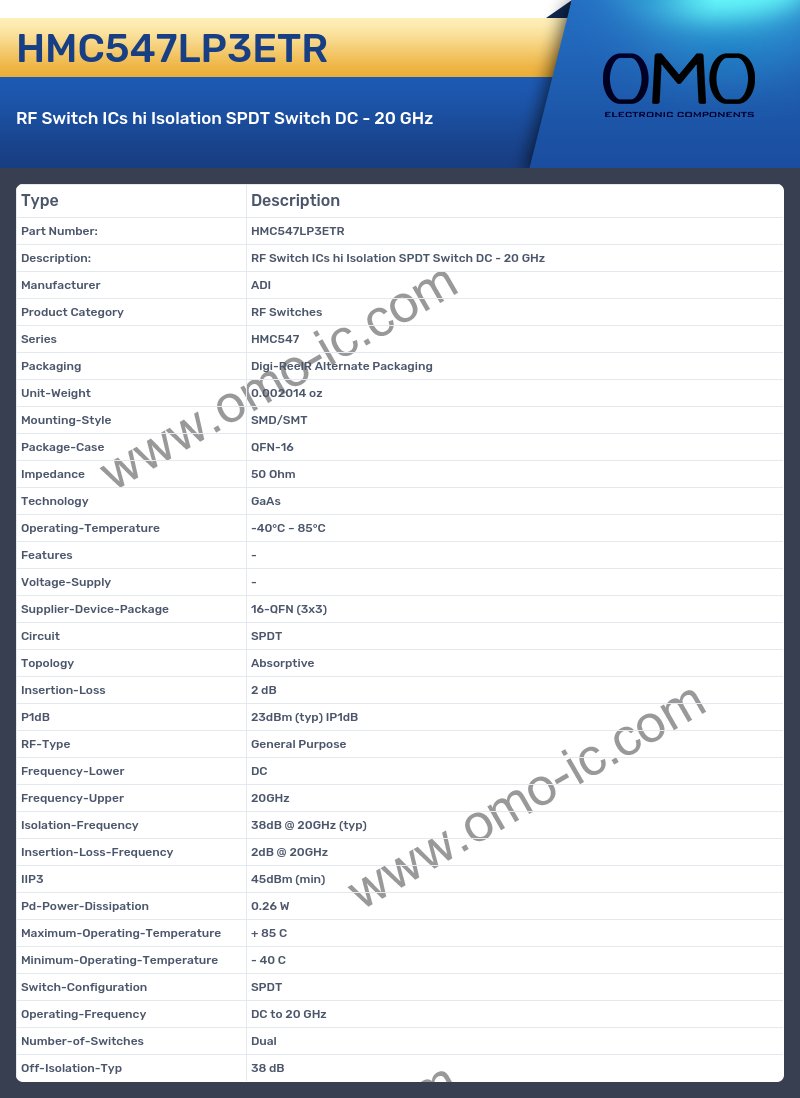

HMC547LP3ETR Specifications

• Manufacturer ADI
• Product Category RF Switches
• Series HMC547
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002014 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-16
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 16-QFN (3x3)
• Circuit SPDT
• Topology Absorptive
• Insertion-Loss 2 dB
• P1dB 23dBm (typ) IP1dB
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 20GHz
• Isolation-Frequency 38dB @ 20GHz (typ)
• Insertion-Loss-Frequency 2dB @ 20GHz
• IIP3 45dBm (min)
• Pd-Power-Dissipation 0.26 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 20 GHz
• Number-of-Switches Dual
• Off-Isolation-Typ 38 dB
