| Mfr. #: | HMC544AE |
|---|---|
| Produttore: | Analog Devices Inc. |
| Descrizione: | RF Switch ICs GaAs MMIC +3V T/R Switch DC - 3 GHz |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | HMC544AE Scheda dati |
Product belongs to the HMC544AG series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-26-6 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 3V Supplier device package: SOT-26 Circuit type: SPDT Topology: - feedback P1dB is - RF-Type: WiMax, WLAN Frequency upper limit of 4GHz Power-off control: 574 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 4 GHz. Maximum off time: 50 ns Single switch functionality Attribute: High-Control-Voltage, Value: 3 V to 5 V Maximum on-time: 50 ns The 12 dB of this product is 35 dB.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

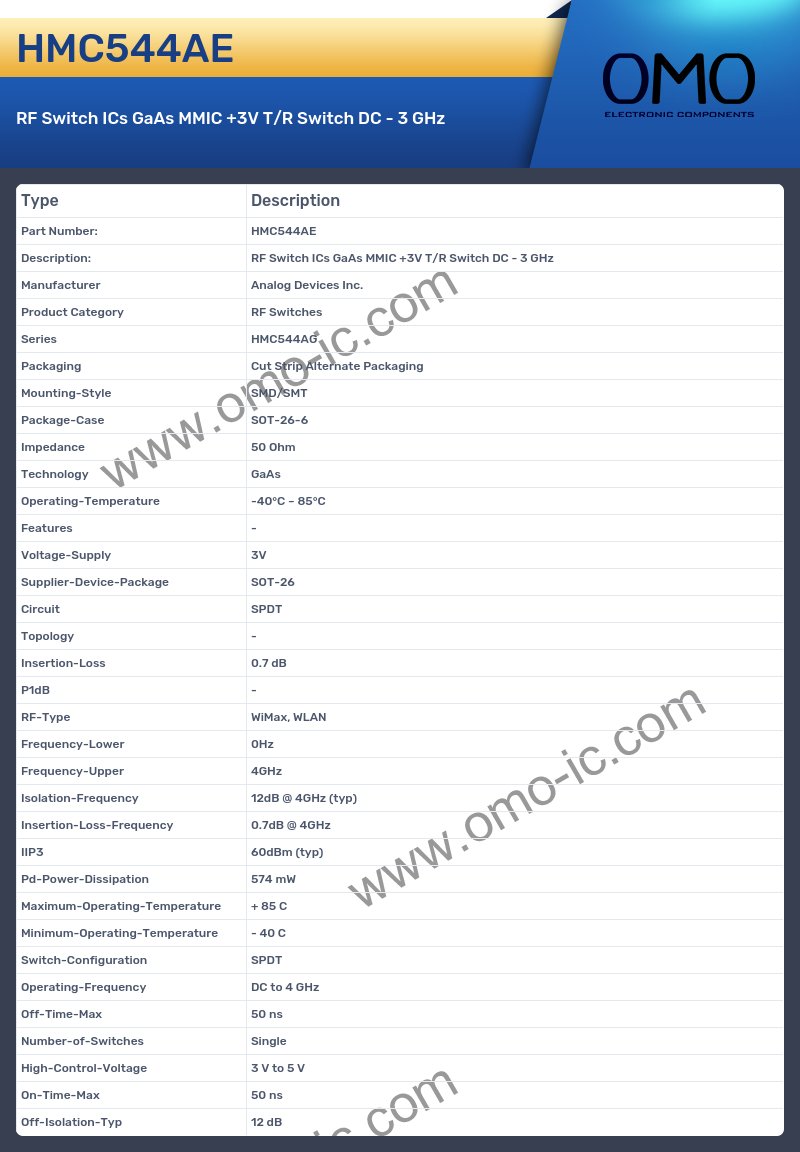

HMC544AE Specifications
