HMC513LP5ETR

HMC513LP5ETR Overview

Product belongs to the HMC513 series. This product is categorized as VCO Digi-ReelR Alternate Packaging is the packaging method for this product Solder Pad Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.039" (1.00mm). 5.1 mm length of the product The 5.1 mm is at most 7.6 mm. QFN-32 This product's 9.6 GHz to 10.8 GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz Voltage Supply Range: 5V Frequency center: 5.4725GHz, 10.945GHz Tuning-Voltage-VDC ranges from 2 ~ 13 V for precise control. This product has a 15. The maximum current consumption of this product is 290mA. 25. This product has a power output of -7±3, 8±3, 7.5±2.5 dBm. This product's -110. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V

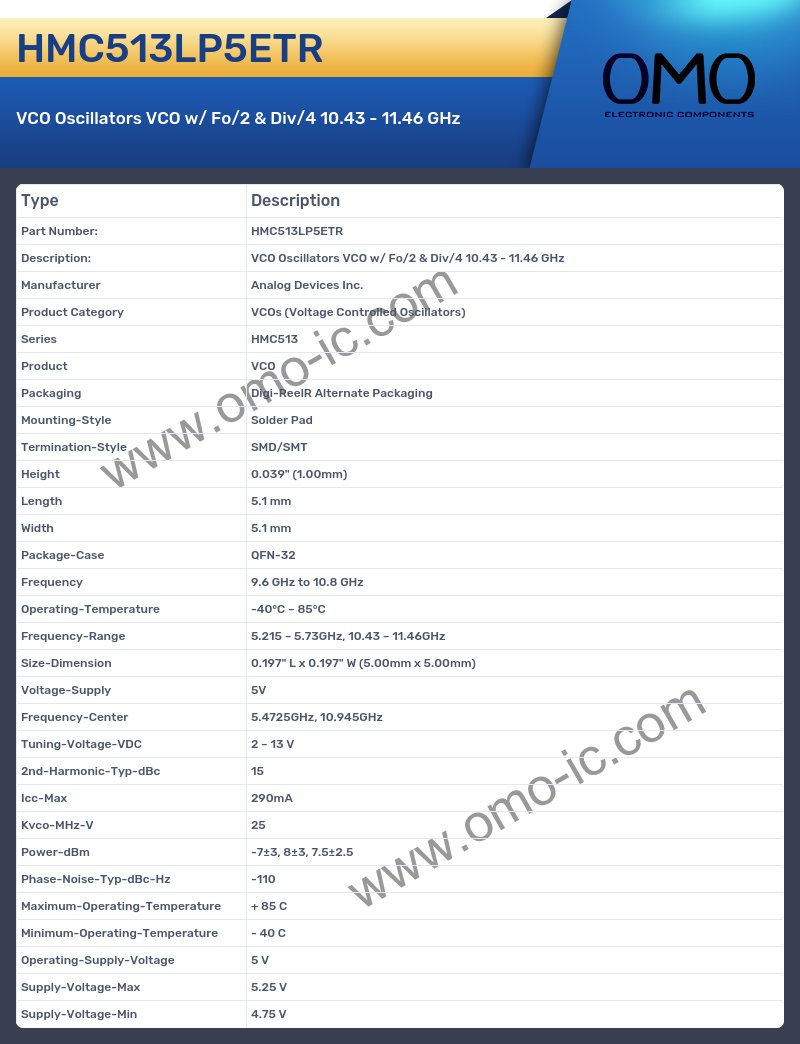

HMC513LP5ETR Image

HMC513LP5ETR Specifications

• Manufacturer Analog Devices Inc.
• Product Category VCOs (Voltage Controlled Oscillators)
• Series HMC513
• Product VCO
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style Solder Pad
• Termination-Style SMD/SMT
• Height 0.039" (1.00mm)
• Length 5.1 mm
• Width 5.1 mm
• Package-Case QFN-32
• Frequency 9.6 GHz to 10.8 GHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz
• Size-Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
• Voltage-Supply 5V
• Frequency-Center 5.4725GHz, 10.945GHz
• Tuning-Voltage-VDC 2 ~ 13 V
• 2nd-Harmonic-Typ-dBc 15
• Icc-Max 290mA
• Kvco-MHz-V 25
• Power-dBm -7±3, 8±3, 7.5±2.5
• Phase-Noise-Typ-dBc-Hz -110
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
