| Mfr. #: | HMC513LP5E |
|---|---|
| Produttore: | Analog Devices Inc. |
| Descrizione: | VCO Oscillators VCO w/ Fo/2 & Div/4 10.43 - 11.46 GHz |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | HMC513LP5E Scheda dati |
Product belongs to the HMC513 series. This product is categorized as VCO Tube Alternate Packaging is the packaging method for this product Solder Pad Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.039" (1.00mm). QFN-32 This product's 10.43 GHz to 11.46 GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz Voltage Supply Range: 5V Frequency center: 5.4725GHz, 10.945GHz Tuning-Voltage-VDC ranges from 2 ~ 13 V for precise control. This product has a 15. The maximum current consumption of this product is 290mA. 25. This product has a power output of -7±3, 8±3, 7.5±2.5 dBm. This product's -110. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V supply voltage for reliable performance. Maximum supply voltage of 3.25 V Minimum supply voltage is 2.75 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

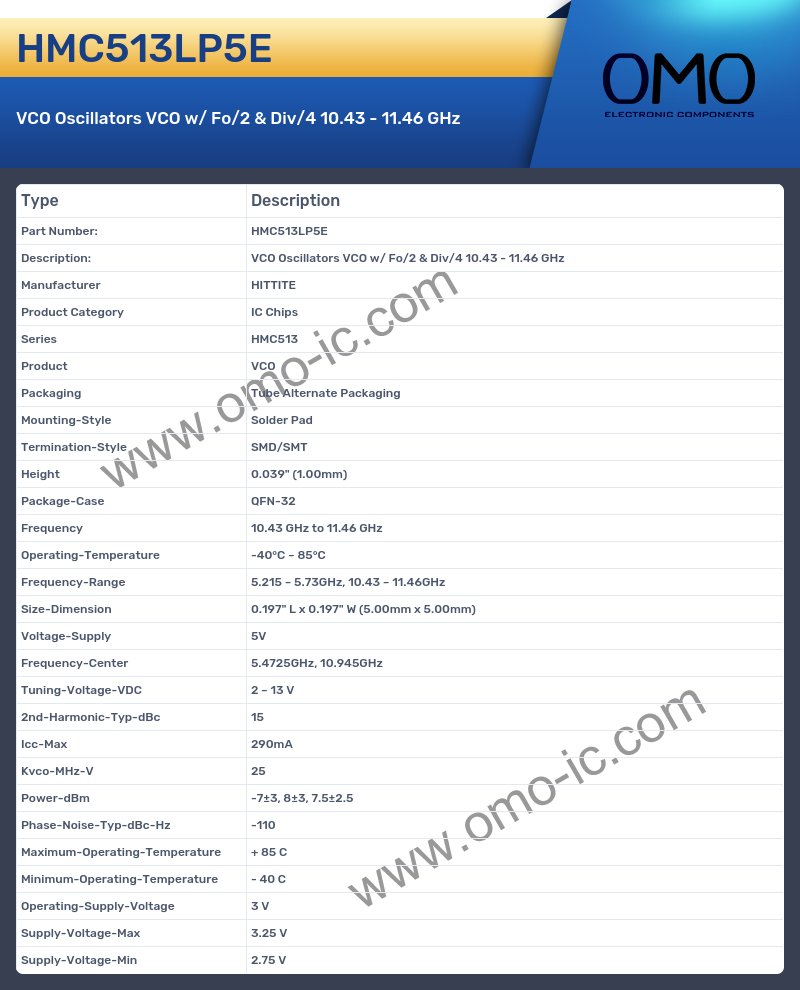

HMC513LP5E Specifications
A: At what frequency does the Series?
Q: The product Series is HMC513.
A: At what frequency does the Product?
Q: The product Product is VCO.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Solder Pad.
A: What is the Termination-Style of the product?
Q: The Termination-Style of the product is SMD/SMT.
A: At what frequency does the Height?
Q: The product Height is 0.039" (1.00mm).
A: At what frequency does the Package-Case?
Q: The product Package-Case is QFN-32.
A: At what frequency does the Frequency?
Q: The product Frequency is 10.43 GHz to 11.46 GHz.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C.
A: What is the Frequency-Range of the product?
Q: The Frequency-Range of the product is 5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz.
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 5V
A: What is the Frequency-Center of the product?
Q: The Frequency-Center of the product is 5.4725GHz, 10.945GHz.
A: At what frequency does the Tuning-Voltage-VDC?
Q: The product Tuning-Voltage-VDC is 2 ~ 13 V.
A: What is the 2nd-Harmonic-Typ-dBc of the product?
Q: The 2nd-Harmonic-Typ-dBc of the product is 15.
A: What is the Icc-Max of the product?
Q: The Icc-Max of the product is 290mA.
A: At what frequency does the Kvco-MHz-V?
Q: The product Kvco-MHz-V is 25.
A: What is the Power-dBm of the product?
Q: The Power-dBm of the product is -7±3, 8±3, 7.5±2.5.
A: What is the Phase-Noise-Typ-dBc-Hz of the product?
Q: The Phase-Noise-Typ-dBc-Hz of the product is -110.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 3 V.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 3.25 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 2.75 V.
