| Mfr. #: | HMC512LP5E |
|---|---|
| Produttore: | Analog Devices Inc. |
| Descrizione: | VCO Oscillators VCO w/ Fo/2 & Div/4 9.6 - 10.8 GHz |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | HMC512LP5E Scheda dati |
Product belongs to the HMC512 series. This product is categorized as VCO Tube Alternate Packaging is the packaging method for this product Solder Pad Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.039" (1.00mm). QFN-32 This product's 9.6 GHz to 10.8 GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz Voltage Supply Range: 5V Frequency center: 5.1GHz, 10.2GHz Tuning-Voltage-VDC ranges from 2 ~ 13 V for precise control. This product has a 25. The maximum current consumption of this product is 370mA. 30. This product has a power output of -5.5±2.5, 10±4, 9±6 dBm. This product's -110. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

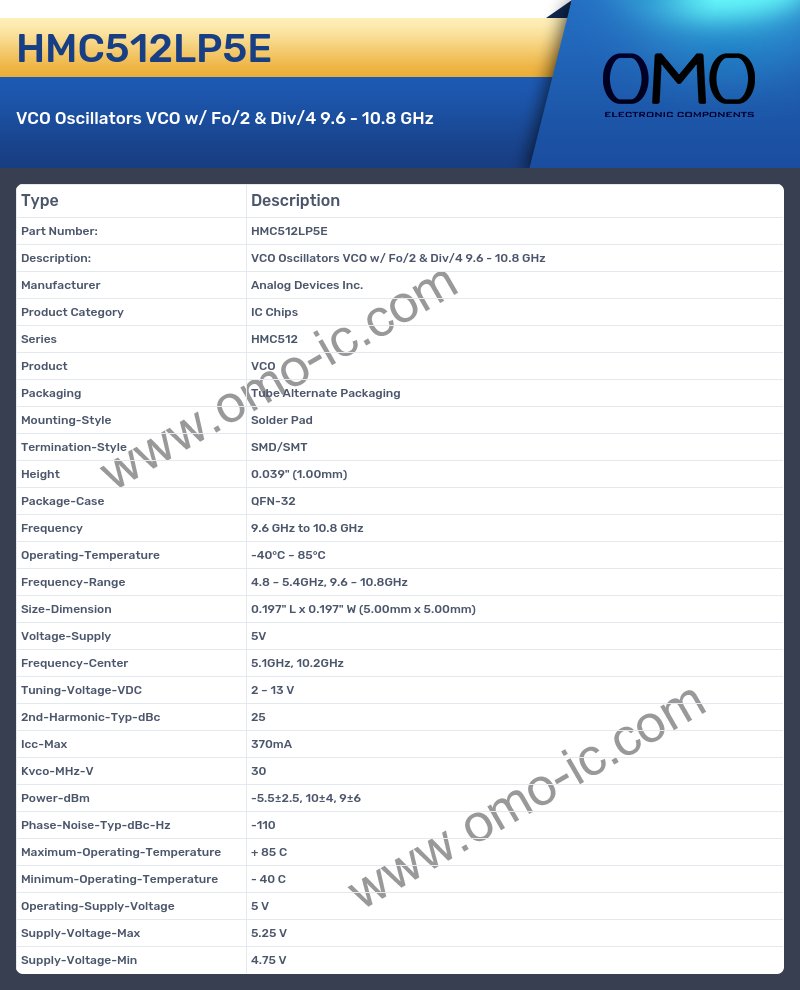

HMC512LP5E Specifications
A: At what frequency does the Series?
Q: The product Series is HMC512.
A: What is the Product of the product?
Q: The Product of the product is VCO.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Solder Pad.
A: At what frequency does the Termination-Style?
Q: The product Termination-Style is SMD/SMT.
A: What is the Height of the product?
Q: The Height of the product is 0.039" (1.00mm).
A: What is the Package-Case of the product?
Q: The Package-Case of the product is QFN-32.
A: Is the cutoff frequency of the product Frequency?
Q: Yes, the product's Frequency is indeed 9.6 GHz to 10.8 GHz
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C
A: Is the cutoff frequency of the product Frequency-Range?
Q: Yes, the product's Frequency-Range is indeed 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 5V
A: At what frequency does the Frequency-Center?
Q: The product Frequency-Center is 5.1GHz, 10.2GHz.
A: Is the cutoff frequency of the product Tuning-Voltage-VDC?
Q: Yes, the product's Tuning-Voltage-VDC is indeed 2 ~ 13 V
A: At what frequency does the 2nd-Harmonic-Typ-dBc?
Q: The product 2nd-Harmonic-Typ-dBc is 25.
A: What is the Icc-Max of the product?
Q: The Icc-Max of the product is 370mA.
A: What is the Kvco-MHz-V of the product?
Q: The Kvco-MHz-V of the product is 30.
A: What is the Power-dBm of the product?
Q: The Power-dBm of the product is -5.5±2.5, 10±4, 9±6.
A: Is the cutoff frequency of the product Phase-Noise-Typ-dBc-Hz?
Q: Yes, the product's Phase-Noise-Typ-dBc-Hz is indeed -110
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 5 V.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 5.25 V.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 4.75 V
