HMC509LP5TR

HMC509LP5TR Overview

Product belongs to the HMC509 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product The Height of the product is 0.039" (1.00mm). 32-VFQFN Exposed Pad Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz Voltage Supply Range: 5V Frequency center: 4.15GHz, 8.3GHz Tuning-Voltage-VDC ranges from 2 ~ 13 V for precise control. This product has a 10. The maximum current consumption of this product is 270mA. 10. This product has a power output of 7.5±2.5, 12.5±2.5 dBm. This product's -115.

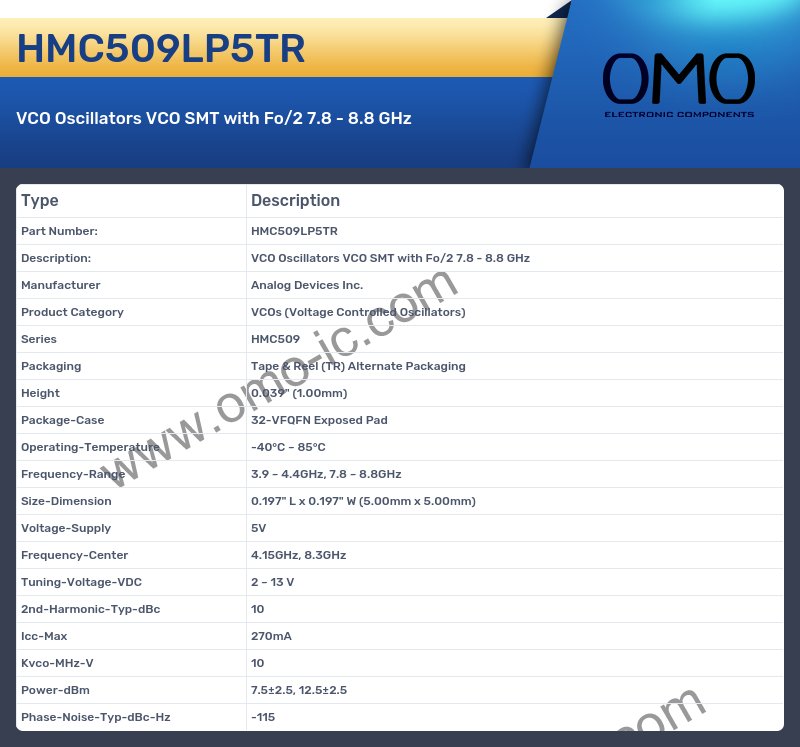

HMC509LP5TR Image

HMC509LP5TR Specifications

• Manufacturer Analog Devices Inc.
• Product Category VCOs (Voltage Controlled Oscillators)
• Series HMC509
• Packaging Tape & Reel (TR) Alternate Packaging
• Height 0.039" (1.00mm)
• Package-Case 32-VFQFN Exposed Pad
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz
• Size-Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
• Voltage-Supply 5V
• Frequency-Center 4.15GHz, 8.3GHz
• Tuning-Voltage-VDC 2 ~ 13 V
• 2nd-Harmonic-Typ-dBc 10
• Icc-Max 270mA
• Kvco-MHz-V 10
• Power-dBm 7.5±2.5, 12.5±2.5
• Phase-Noise-Typ-dBc-Hz -115
