| Mfr. #: | HMC509LP5ETR |
|---|---|
| Produttore: | Analog Devices Inc. |
| Descrizione: | VCO Oscillators VCO SMT with Fo/2 7.8 - 8.8 GHz |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | HMC509LP5ETR Scheda dati |
Product belongs to the HMC509 series. This product is categorized as VCO Tape & Reel (TR) Alternate Packaging is the packaging method for this product Solder Pad Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.039" (1.00mm). 5.1 mm length of the product The 5.1 mm is at most 7.6 mm. QFN-32 This product's 7.8 GHz to 8.8 GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz Voltage Supply Range: 5V Frequency center: 4.15GHz, 8.3GHz Tuning-Voltage-VDC ranges from 2 ~ 13 V for precise control. This product has a 10. The maximum current consumption of this product is 270mA. 10. This product has a power output of 7.5±2.5, 12.5±2.5 dBm. This product's -115. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

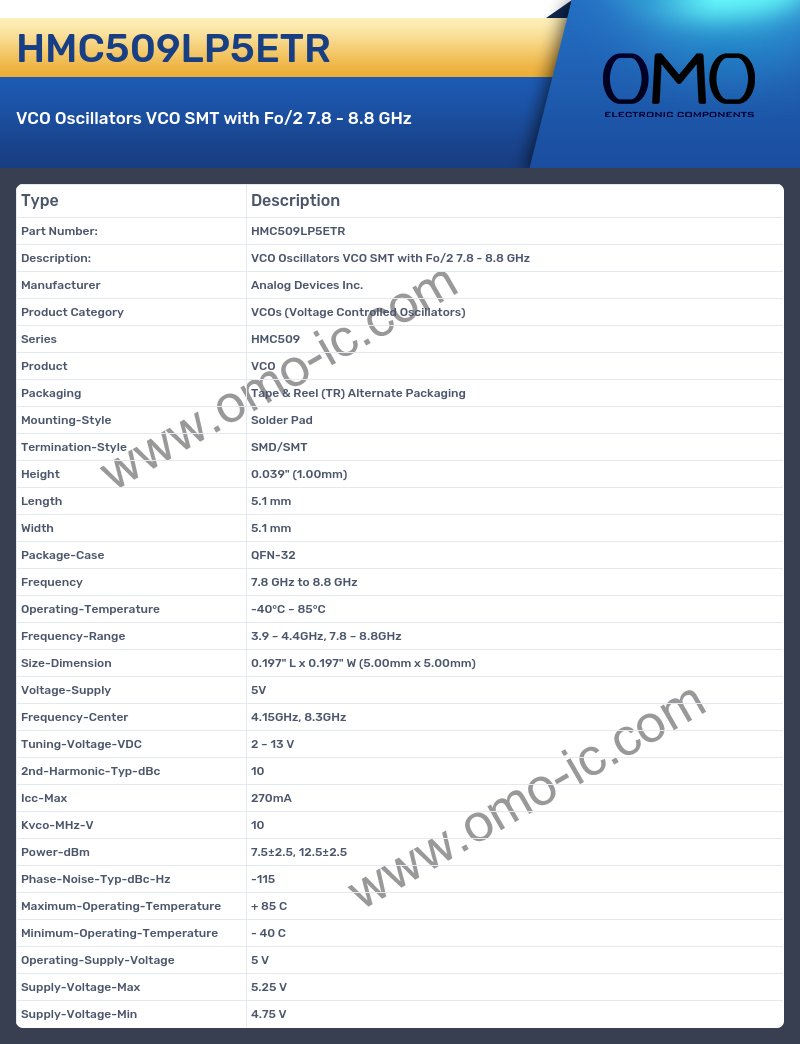

HMC509LP5ETR Specifications
A: At what frequency does the Series?
Q: The product Series is HMC509.
A: What is the Product of the product?
Q: The Product of the product is VCO.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tape & Reel (TR) Alternate Packaging
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Solder Pad.
A: What is the Termination-Style of the product?
Q: The Termination-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Height?
Q: Yes, the product's Height is indeed 0.039" (1.00mm)
A: Is the cutoff frequency of the product Length?
Q: Yes, the product's Length is indeed 5.1 mm
A: At what frequency does the Width?
Q: The product Width is 5.1 mm.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed QFN-32
A: Is the cutoff frequency of the product Frequency?
Q: Yes, the product's Frequency is indeed 7.8 GHz to 8.8 GHz
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C.
A: What is the Frequency-Range of the product?
Q: The Frequency-Range of the product is 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz.
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 5V
A: Is the cutoff frequency of the product Frequency-Center?
Q: Yes, the product's Frequency-Center is indeed 4.15GHz, 8.3GHz
A: At what frequency does the Tuning-Voltage-VDC?
Q: The product Tuning-Voltage-VDC is 2 ~ 13 V.
A: At what frequency does the 2nd-Harmonic-Typ-dBc?
Q: The product 2nd-Harmonic-Typ-dBc is 10.
A: Is the cutoff frequency of the product Icc-Max?
Q: Yes, the product's Icc-Max is indeed 270mA
A: What is the Kvco-MHz-V of the product?
Q: The Kvco-MHz-V of the product is 10.
A: At what frequency does the Power-dBm?
Q: The product Power-dBm is 7.5±2.5, 12.5±2.5.
A: Is the cutoff frequency of the product Phase-Noise-Typ-dBc-Hz?
Q: Yes, the product's Phase-Noise-Typ-dBc-Hz is indeed -115
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 5 V
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 5.25 V.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 4.75 V
