HMC507LP5

HMC507LP5 Overview

Product belongs to the HMC507 series. This product is categorized as VCO Cut Strip Alternate Packaging is the packaging method for this product Solder Pad Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 1 mm. 5.1 mm length of the product The 5.1 mm is at most 7.6 mm. QFN-32 This product's 6.65GHz ~ 7.65GHz range is 0Hz to 2.2GHz. Voltage Supply Range: 5V Supplier device package: 32-QFN (5x5) This product has a 270mA of 200μA. The device offers a - of 26dB. Test-Frequency is -. P1dB is - RF-Type: VSAT Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V

HMC507LP5 Image

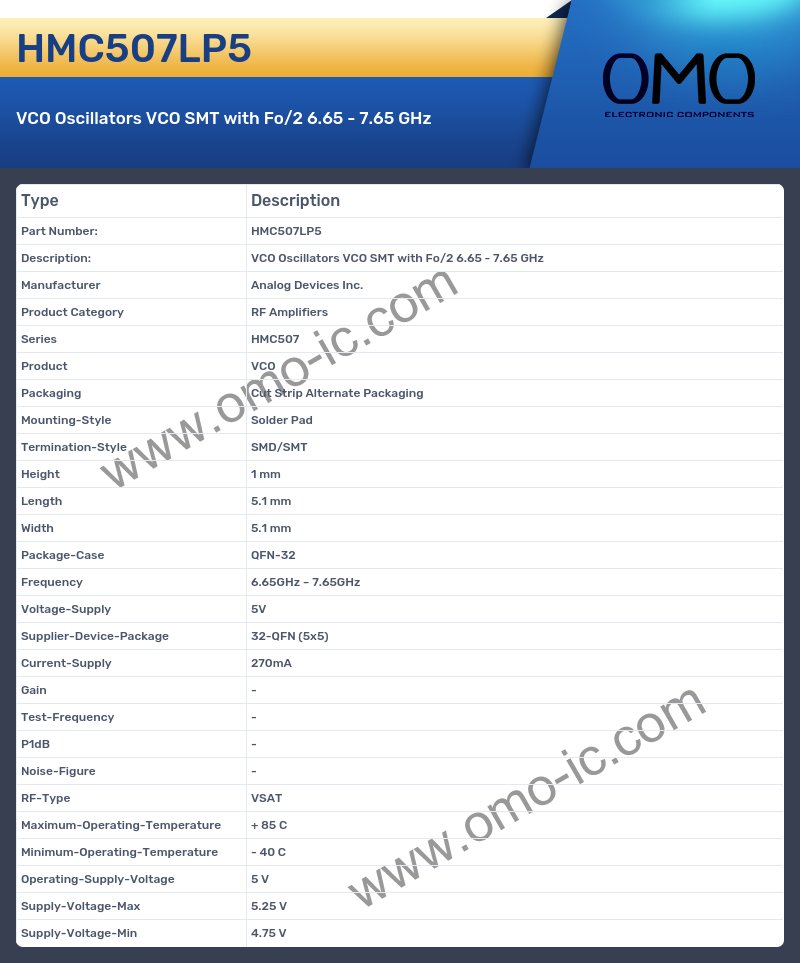

HMC507LP5 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC507
• Product VCO
• Packaging Cut Strip Alternate Packaging
• Mounting-Style Solder Pad
• Termination-Style SMD/SMT
• Height 1 mm
• Length 5.1 mm
• Width 5.1 mm
• Package-Case QFN-32
• Frequency 6.65GHz ~ 7.65GHz
• Voltage-Supply 5V
• Supplier-Device-Package 32-QFN (5x5)
• Current-Supply 270mA
• Gain -
• Test-Frequency -
• P1dB -
• Noise-Figure -
• RF-Type VSAT
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
