HMC462LP5

HMC462LP5 Overview

Product belongs to the HMC462G series. Type: RF Amplifier Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SMT-32 This product's 2GHz ~ 20GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 2 GHz to 20 GHz Number of channels: 1 Channel Voltage Supply Range: 5V Supplier device package: 32-QFN (5x5) This product has a 66mA of 200μA. The device offers a 13dB of 26dB. The amplifier is of LNA type. Test-Frequency is 10GHz. P1dB is 14dBm RF-Type: General Purpose Power-off control: 3.25 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 66 mA is 92 nA. The operating frequency is 20 GHz. NF-Noise-Figure is 2.5 dB 26 dBm OIP3 third-order intercept The 15 dB is 12 dB.

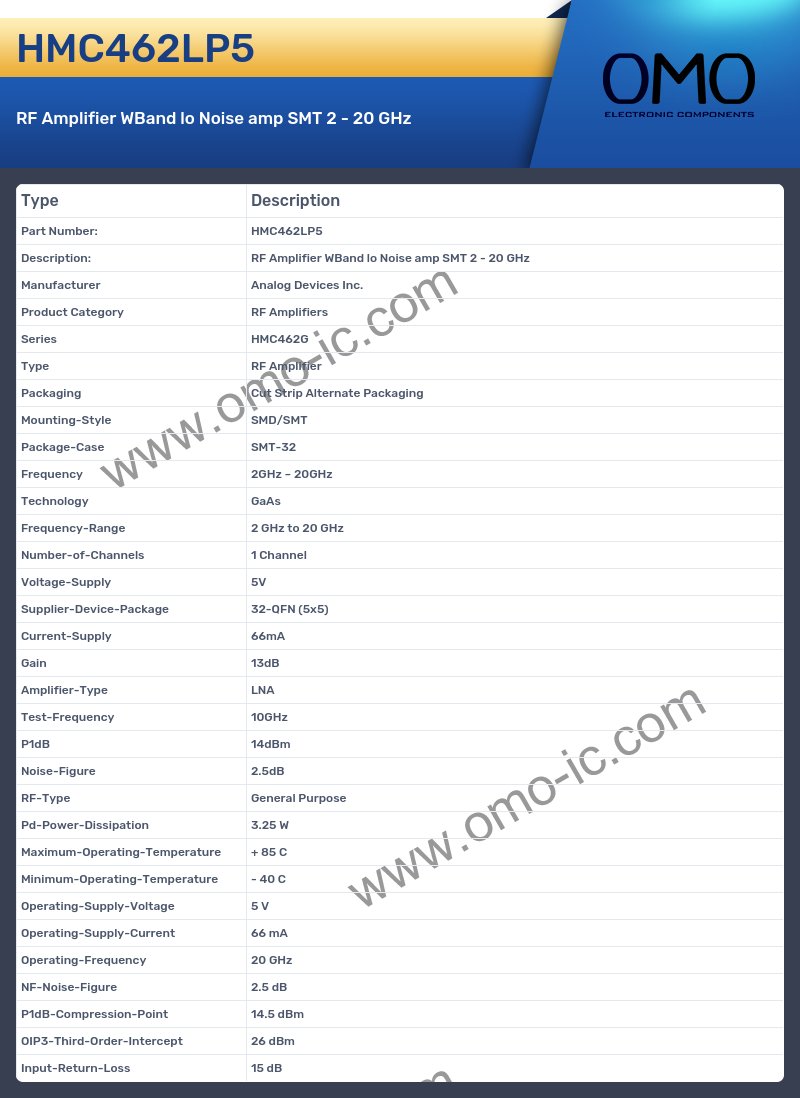

HMC462LP5 Image

HMC462LP5 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC462G
• Type RF Amplifier
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SMT-32
• Frequency 2GHz ~ 20GHz
• Technology GaAs
• Frequency-Range 2 GHz to 20 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 5V
• Supplier-Device-Package 32-QFN (5x5)
• Current-Supply 66mA
• Gain 13dB
• Amplifier-Type LNA
• Test-Frequency 10GHz
• P1dB 14dBm
• Noise-Figure 2.5dB
• RF-Type General Purpose
• Pd-Power-Dissipation 3.25 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 66 mA
• Operating-Frequency 20 GHz
• NF-Noise-Figure 2.5 dB
• P1dB-Compression-Point 14.5 dBm
• OIP3-Third-Order-Intercept 26 dBm
• Input-Return-Loss 15 dB
