HMC441LP3E

HMC441LP3E Overview

Product belongs to the HMC441G series. Type: RF Amplifier Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SMT-16 This product's 6.5GHz ~ 13.5GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 6.5 GHz to 13.5 GHz Number of channels: 1 Channel Voltage Supply Range: 5V Supplier device package: 16-SMT (3x3) This product has a 115mA of 200μA. The device offers a 13dB of 26dB. The amplifier is of Power type. Test-Frequency is -. P1dB is 17dBm RF-Type: General Purpose Power-off control: 0.76 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 90 mA is 92 nA. The operating frequency is 13.5 GHz. NF-Noise-Figure is 5 dB 29 dBm OIP3 third-order intercept The 15 dB is 12 dB.

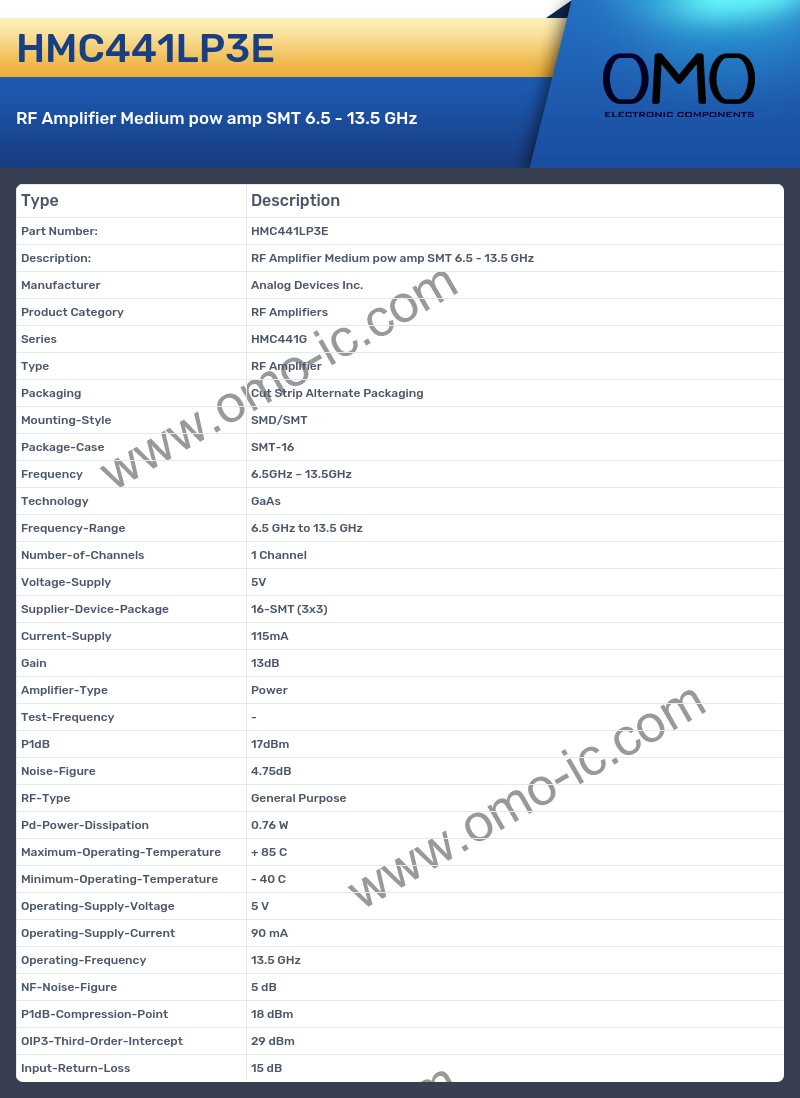

HMC441LP3E Image

HMC441LP3E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC441G
• Type RF Amplifier
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SMT-16
• Frequency 6.5GHz ~ 13.5GHz
• Technology GaAs
• Frequency-Range 6.5 GHz to 13.5 GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 5V
• Supplier-Device-Package 16-SMT (3x3)
• Current-Supply 115mA
• Gain 13dB
• Amplifier-Type Power
• Test-Frequency -
• P1dB 17dBm
• Noise-Figure 4.75dB
• RF-Type General Purpose
• Pd-Power-Dissipation 0.76 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 90 mA
• Operating-Frequency 13.5 GHz
• NF-Noise-Figure 5 dB
• P1dB-Compression-Point 18 dBm
• OIP3-Third-Order-Intercept 29 dBm
• Input-Return-Loss 15 dB
