HMC347C8 Overview

Product belongs to the HMC347G series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style C8 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 5V Supplier device package: 8-CSMD Circuit type: SPDT Topology: - feedback P1dB is 23dBm RF-Type: General Purpose Frequency upper limit of 8GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C Switch Configuration: SPDT The operating frequency is DC to 8 GHz. Dual switch functionality The 40 dB of this product is 35 dB.

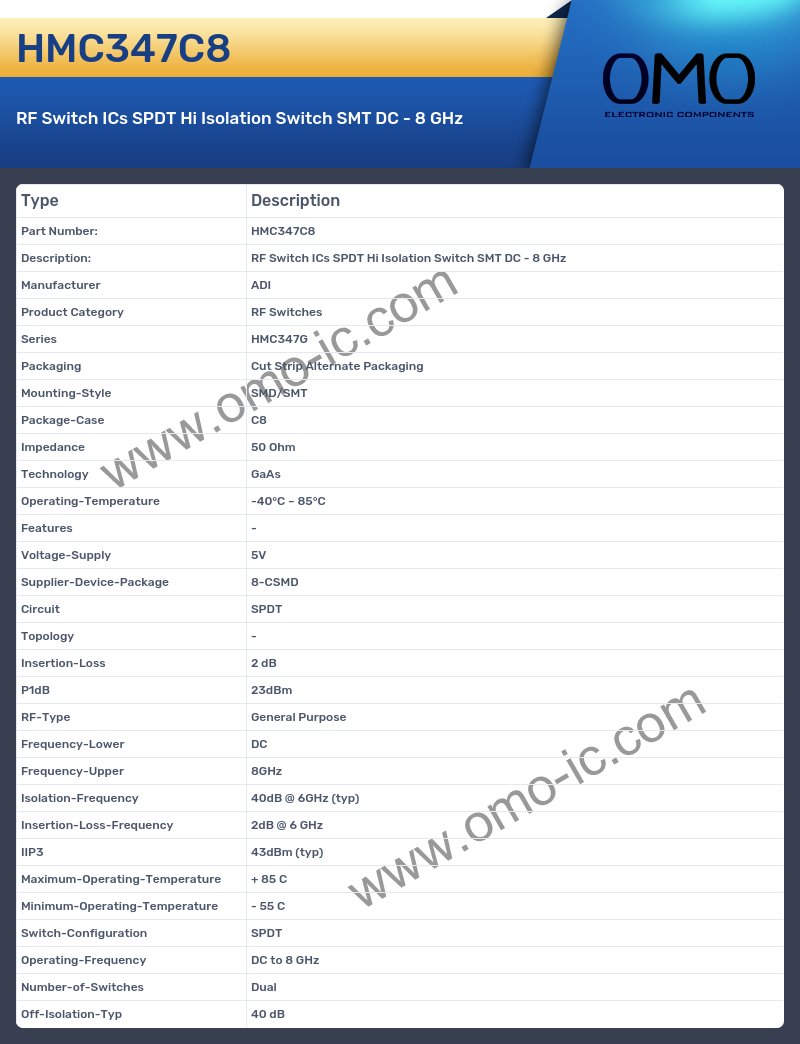

HMC347C8 Image

HMC347C8 Specifications

• Manufacturer ADI
• Product Category RF Switches
• Series HMC347G
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case C8
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 5V
• Supplier-Device-Package 8-CSMD
• Circuit SPDT
• Topology -
• Insertion-Loss 2 dB
• P1dB 23dBm
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 8GHz
• Isolation-Frequency 40dB @ 6GHz (typ)
• Insertion-Loss-Frequency 2dB @ 6 GHz
• IIP3 43dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 8 GHz
• Number-of-Switches Dual
• Off-Isolation-Typ 40 dB
