HMC344LH5

HMC344LH5 Overview

Product belongs to the HMC344G series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LH5-12 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 12-SMT (5x5) Circuit type: SP4T Topology: Absorptive feedback P1dB is 27dBm RF-Type: Radar Frequency upper limit of 12GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SP4T The operating frequency is DC to 12 GHz. Quad switch functionality Attribute: High-Control-Voltage, Value: - 5 V to - 4.2 V The 35 dB of this product is 35 dB.

HMC344LH5 Image

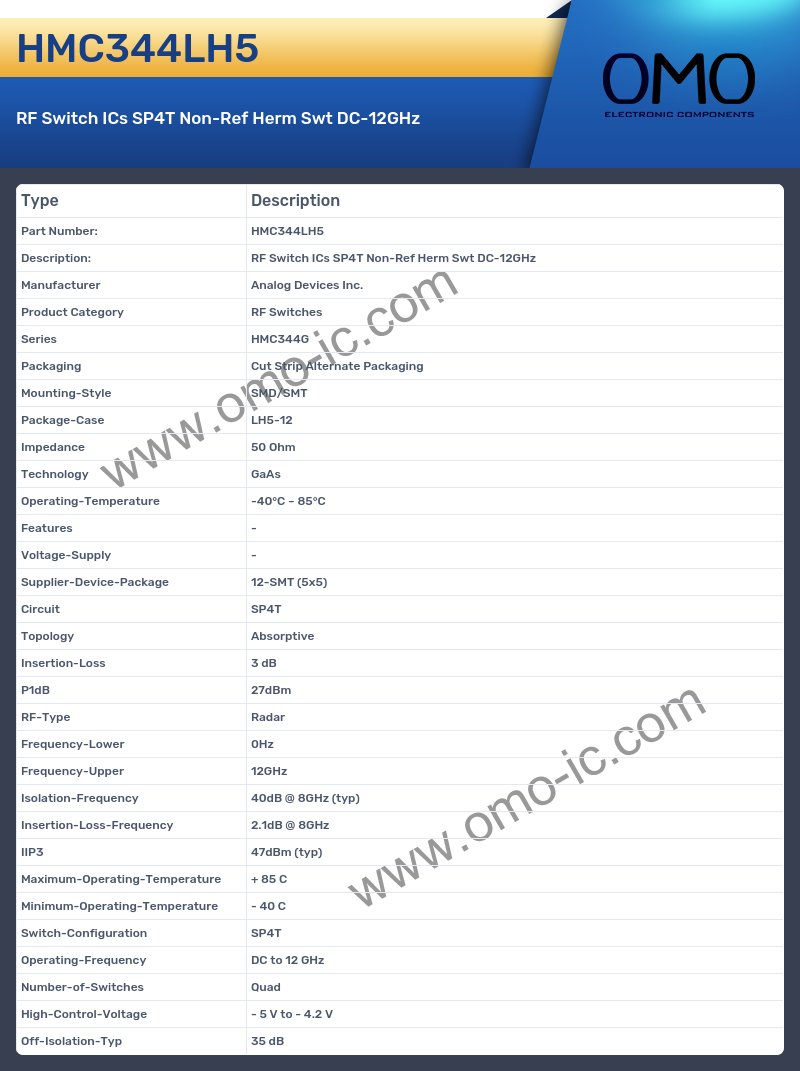

HMC344LH5 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC344G
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LH5-12
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 12-SMT (5x5)
• Circuit SP4T
• Topology Absorptive
• Insertion-Loss 3 dB
• P1dB 27dBm
• RF-Type Radar
• Frequency-Lower 0Hz
• Frequency-Upper 12GHz
• Isolation-Frequency 40dB @ 8GHz (typ)
• Insertion-Loss-Frequency 2.1dB @ 8GHz
• IIP3 47dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SP4T
• Operating-Frequency DC to 12 GHz
• Number-of-Switches Quad
• High-Control-Voltage - 5 V to - 4.2 V
• Off-Isolation-Typ 35 dB
