HMC284AMS8G

HMC284AMS8G Overview

Product belongs to the HMC284A series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style MSOP-8 Impedance value is 50 Ohm Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 8-MSOPG Circuit type: SPDT Topology: Absorptive feedback P1dB is 29dBm (typ) IP1dB RF-Type: Cellular, ISM, PCS Frequency upper limit of 3.5GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 3.5 GHz. Dual switch functionality The 45 dB of this product is 35 dB.

HMC284AMS8G Image

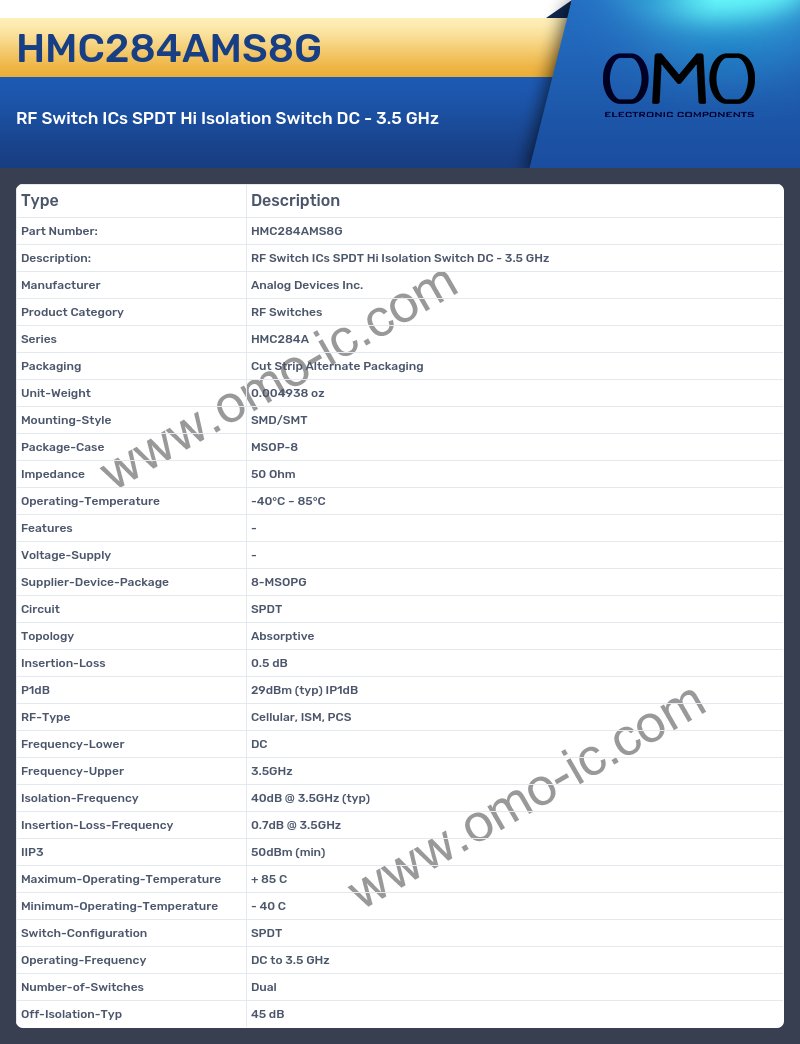

HMC284AMS8G Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC284A
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Impedance 50 Ohm
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 8-MSOPG
• Circuit SPDT
• Topology Absorptive
• Insertion-Loss 0.5 dB
• P1dB 29dBm (typ) IP1dB
• RF-Type Cellular, ISM, PCS
• Frequency-Lower DC
• Frequency-Upper 3.5GHz
• Isolation-Frequency 40dB @ 3.5GHz (typ)
• Insertion-Loss-Frequency 0.7dB @ 3.5GHz
• IIP3 50dBm (min)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 3.5 GHz
• Number-of-Switches Dual
• Off-Isolation-Typ 45 dB
