HMC199AMS8E

HMC199AMS8E Overview

Product belongs to the HMC199A series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style MSOP-8 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 3V Supplier device package: 8-MSOP Circuit type: SPDT Topology: - feedback P1dB is 28dBm RF-Type: ISM Frequency upper limit of 2.5GHz Power-off control: 380 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 2.5 GHz. Maximum supply voltage of 5 V Maximum off time: 40 ns Dual switch functionality Attribute: High-Control-Voltage, Value: 5 V Maximum on-time: 40 ns The 22 dB of this product is 35 dB.

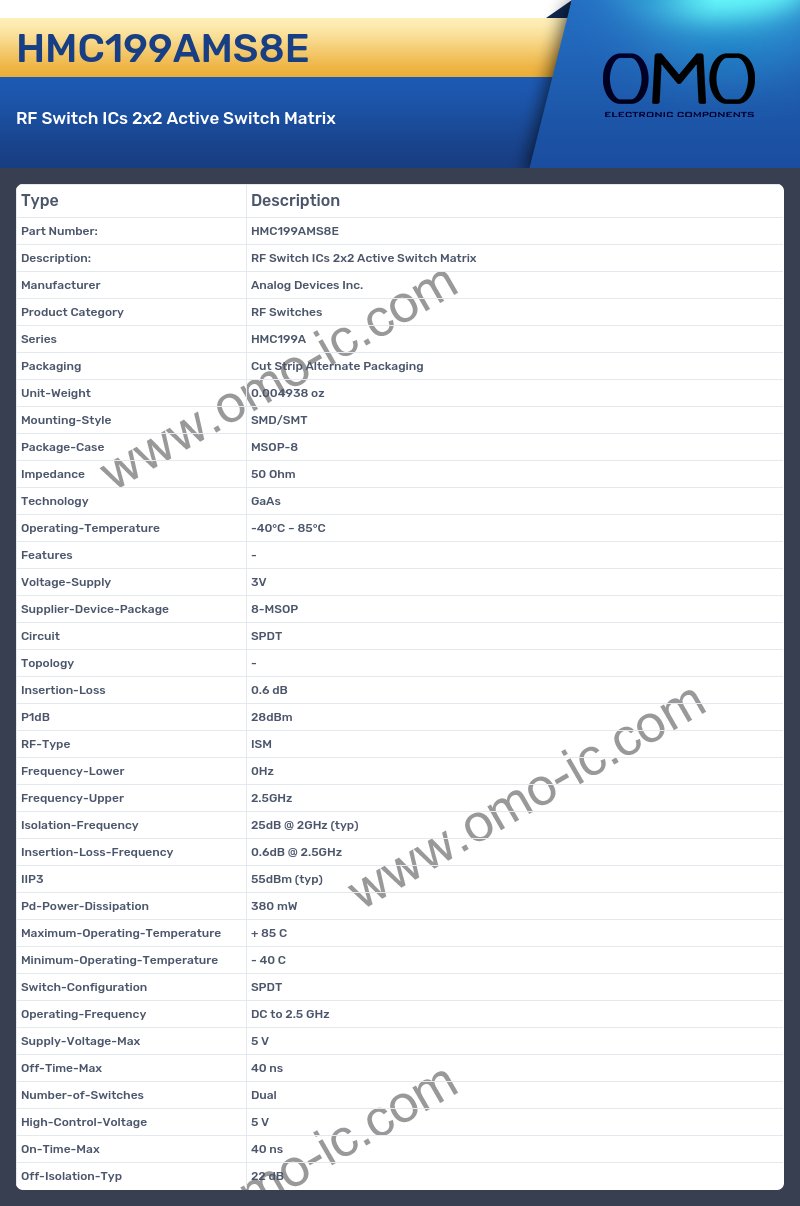

HMC199AMS8E Image

HMC199AMS8E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC199A
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 3V
• Supplier-Device-Package 8-MSOP
• Circuit SPDT
• Topology -
• Insertion-Loss 0.6 dB
• P1dB 28dBm
• RF-Type ISM
• Frequency-Lower 0Hz
• Frequency-Upper 2.5GHz
• Isolation-Frequency 25dB @ 2GHz (typ)
• Insertion-Loss-Frequency 0.6dB @ 2.5GHz
• IIP3 55dBm (typ)
• Pd-Power-Dissipation 380 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 2.5 GHz
• Supply-Voltage-Max 5 V
• Off-Time-Max 40 ns
• Number-of-Switches Dual
• High-Control-Voltage 5 V
• On-Time-Max 40 ns
• Off-Isolation-Typ 22 dB
