HMC1097LP4E

HMC1097LP4E Overview

Product belongs to the HMC1097 series. Type: Modulator Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.032741 oz SMD/SMT Mounting-Style QFN-24 Si is the technology used. Product function is Modulator. Voltage Supply Range: 4.75 V ~ 5.25 V This product has a 170mA of 200μA. Test-Frequency is 1.7GHz ~ 2.2GHz. P1dB is 11dBm Power-off control: 2.05 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. The 6000 MHz of this product is 25 GHz. 170 mA is 92 nA. The 100 MHz of this product is 0 Hz. GMSK QPSK QAM SSB are the supported modulation formats.

HMC1097LP4E Image

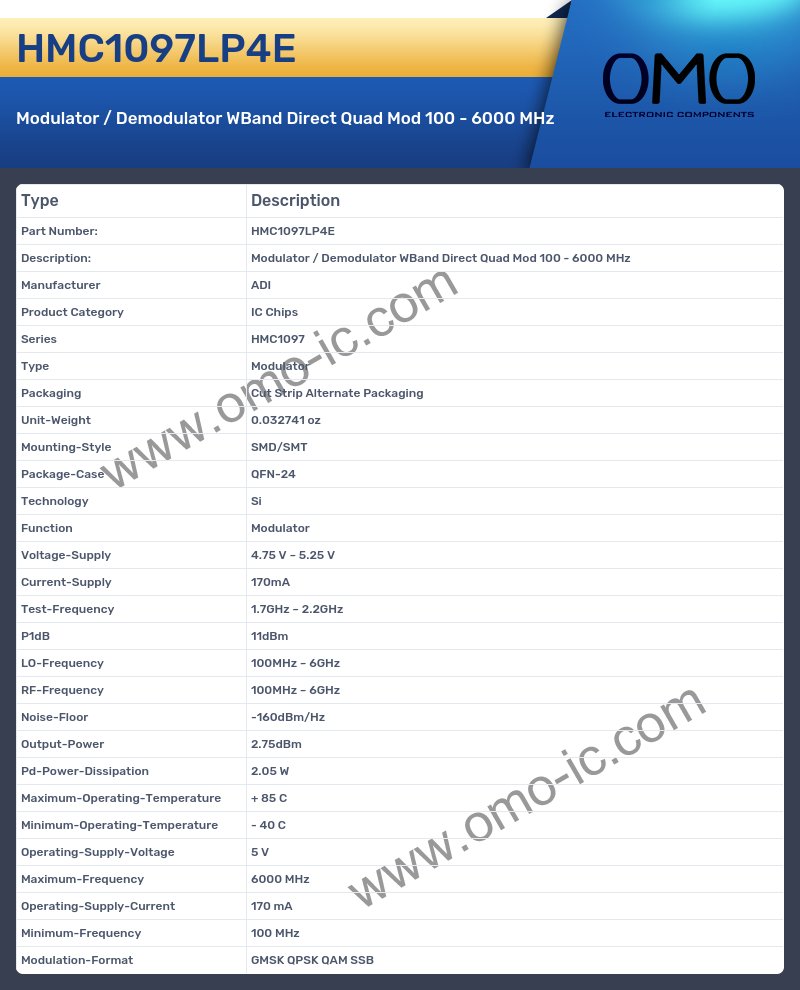

HMC1097LP4E Specifications

• Manufacturer ADI
• Product Category IC Chips
• Series HMC1097
• Type Modulator
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.032741 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-24
• Technology Si
• Function Modulator
• Voltage-Supply 4.75 V ~ 5.25 V
• Current-Supply 170mA
• Test-Frequency 1.7GHz ~ 2.2GHz
• P1dB 11dBm
• LO-Frequency 100MHz ~ 6GHz
• RF-Frequency 100MHz ~ 6GHz
• Noise-Floor -160dBm/Hz
• Output-Power 2.75dBm
• Pd-Power-Dissipation 2.05 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Maximum-Frequency 6000 MHz
• Operating-Supply-Current 170 mA
• Minimum-Frequency 100 MHz
• Modulation-Format GMSK QPSK QAM SSB
