HMC1084LC4

HMC1084LC4 Overview

Product belongs to the HMC1084 series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style QFN-EP-24 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -55°C ~ 85°C Voltage Supply Range: - Supplier device package: 24-SMT (4x4) Circuit type: SP4T Topology: Reflective feedback P1dB is - RF-Type: General Purpose Frequency upper limit of 30GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C Switch Configuration: SP4T The operating frequency is 23 GHz to 30 GHz. Quad switch functionality The 26 dB of this product is 35 dB.

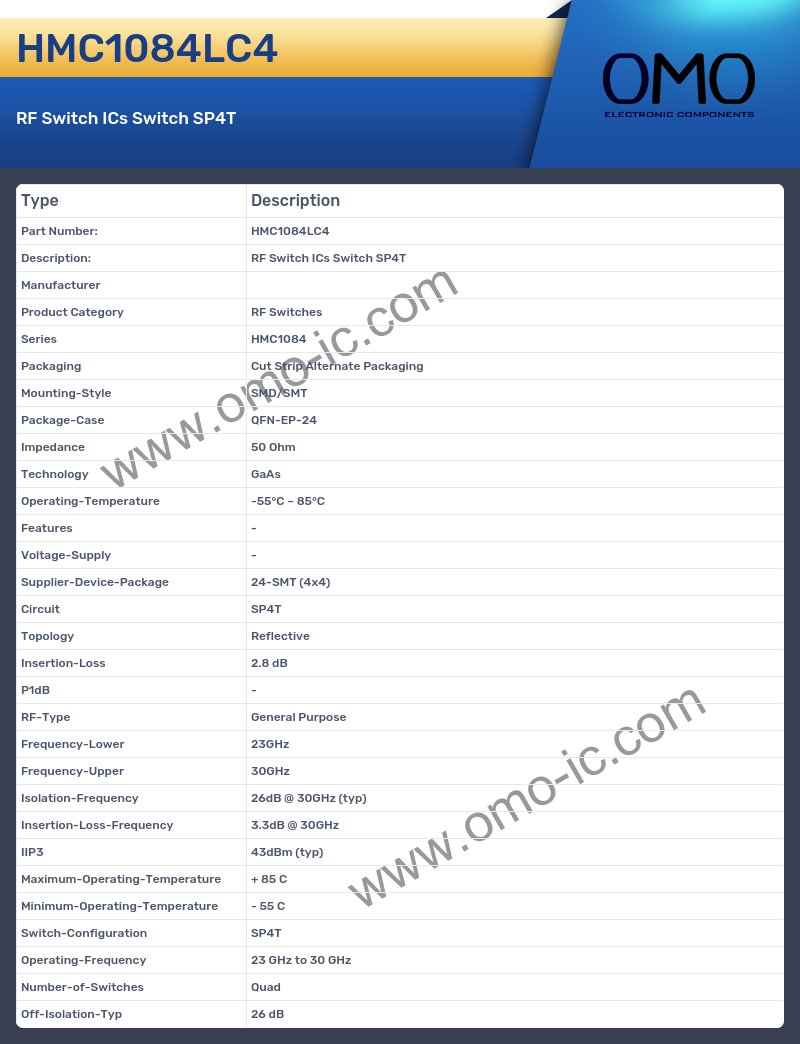

HMC1084LC4 Image

HMC1084LC4 Specifications

• Manufacturer
• Product Category RF Switches
• Series HMC1084
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case QFN-EP-24
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -55°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 24-SMT (4x4)
• Circuit SP4T
• Topology Reflective
• Insertion-Loss 2.8 dB
• P1dB -
• RF-Type General Purpose
• Frequency-Lower 23GHz
• Frequency-Upper 30GHz
• Isolation-Frequency 26dB @ 30GHz (typ)
• Insertion-Loss-Frequency 3.3dB @ 30GHz
• IIP3 43dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Switch-Configuration SP4T
• Operating-Frequency 23 GHz to 30 GHz
• Number-of-Switches Quad
• Off-Isolation-Typ 26 dB
