HMC-SDD112

HMC-SDD112 Overview

Product belongs to the HMC-SDD112G series. Bulk is the packaging method for this product SMD/SMT Mounting-Style Chip Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -55°C ~ 85°C Voltage Supply Range: - Supplier device package: Die Circuit type: SPDT Topology: - feedback P1dB is - RF-Type: Radar Frequency upper limit of 86GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C Switch Configuration: SPDT The operating frequency is 55 GHz to 86 GHz. Dual switch functionality Attribute: High-Control-Voltage, Value: 5 V The 30 dB of this product is 35 dB.

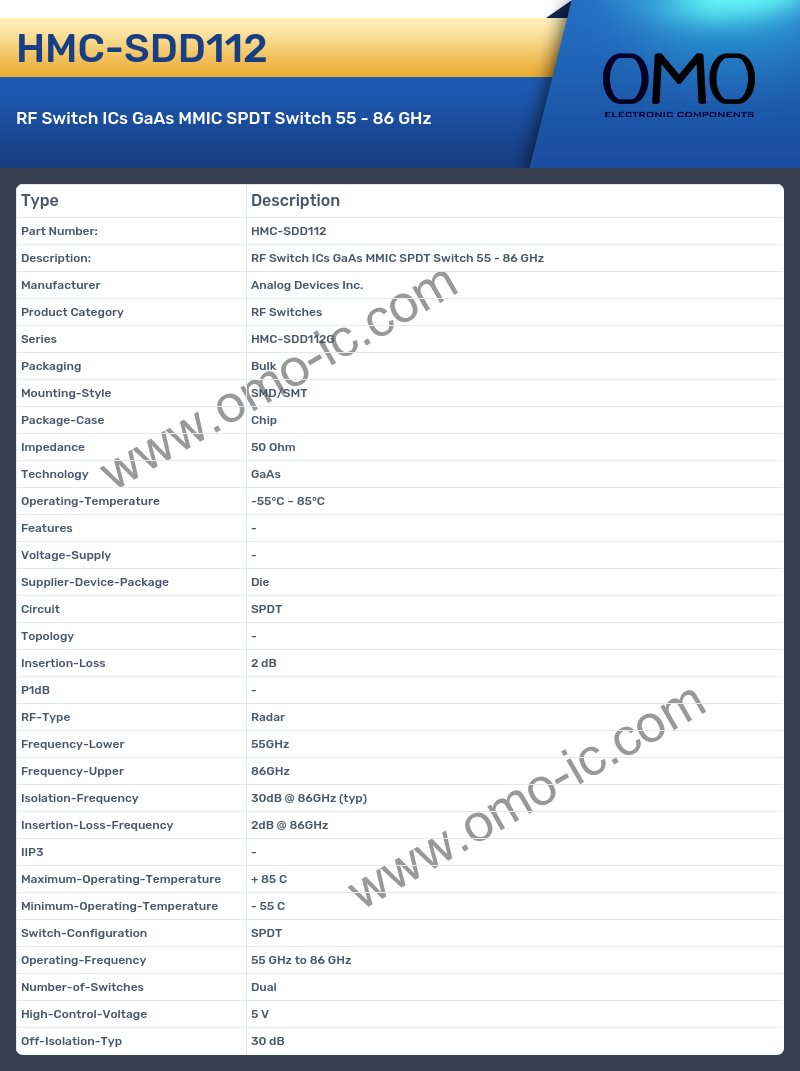

HMC-SDD112 Image

HMC-SDD112 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC-SDD112G
• Packaging Bulk
• Mounting-Style SMD/SMT
• Package-Case Chip
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -55°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package Die
• Circuit SPDT
• Topology -
• Insertion-Loss 2 dB
• P1dB -
• RF-Type Radar
• Frequency-Lower 55GHz
• Frequency-Upper 86GHz
• Isolation-Frequency 30dB @ 86GHz (typ)
• Insertion-Loss-Frequency 2dB @ 86GHz
• IIP3 -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Switch-Configuration SPDT
• Operating-Frequency 55 GHz to 86 GHz
• Number-of-Switches Dual
• High-Control-Voltage 5 V
• Off-Isolation-Typ 30 dB
