HCF4070YM013TR

HCF4070YM013TR Overview

Product belongs to the Automotive, AEC-Q100, 4000 series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications SO-14 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 20 V Supplier device package: 14-SO 4 is 8. 4 Gate is the number of gates included in this product. 20μA maximum quiescent current. XOR (Exclusive OR) logic type 1.5 V ~ 4 V is a Logic-Level-Low; 3.5 V ~ 11 V is the Logic-Level-High Power-off control: 200 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 20 V Minimum supply voltage is 3 V HCF logic type 140 ns is 23 microseconds. High-Level-Output-Current of - 3.2 mA 3 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 2 Output OR logic function

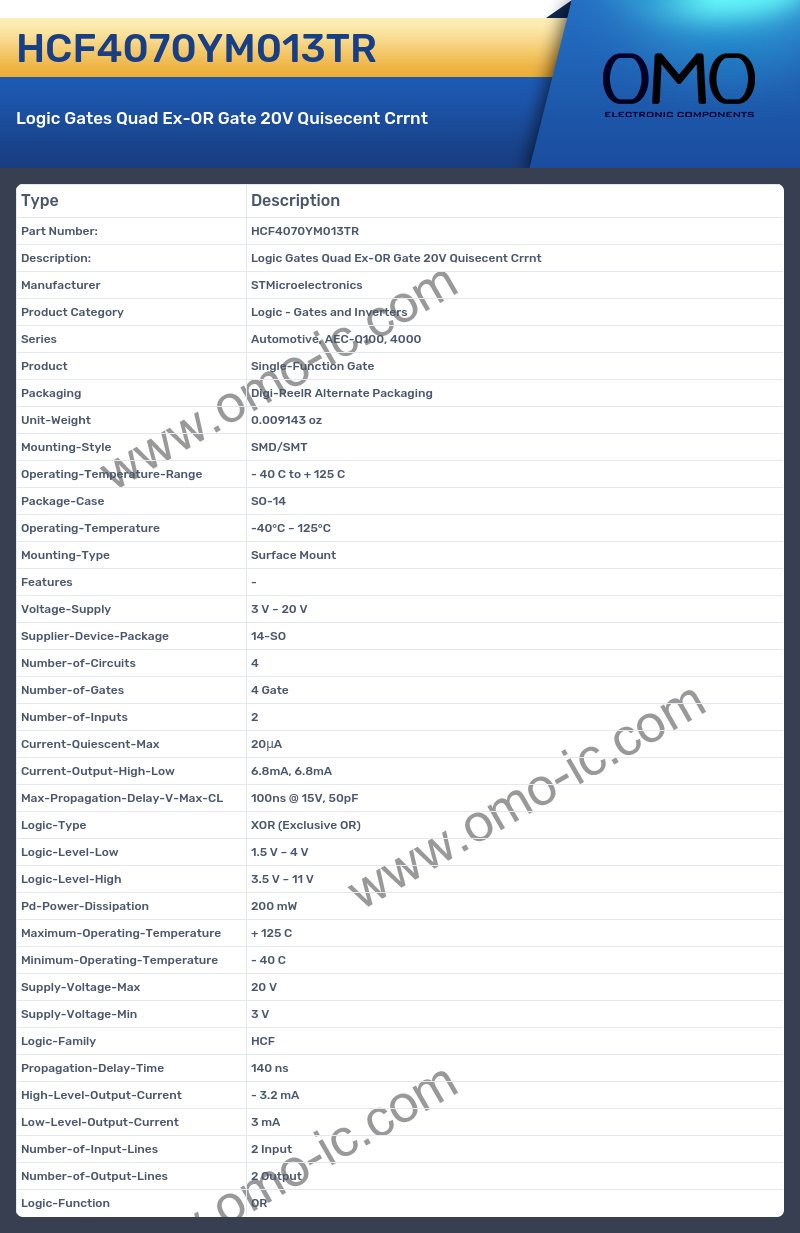

HCF4070YM013TR Image

HCF4070YM013TR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series Automotive, AEC-Q100, 4000
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SO-14
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 3 V ~ 20 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 4
• Number-of-Gates 4 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 20μA
• Current-Output-High-Low 6.8mA, 6.8mA
• Max-Propagation-Delay-V-Max-CL 100ns @ 15V, 50pF
• Logic-Type XOR (Exclusive OR)
• Logic-Level-Low 1.5 V ~ 4 V
• Logic-Level-High 3.5 V ~ 11 V
• Pd-Power-Dissipation 200 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 20 V
• Supply-Voltage-Min 3 V
• Logic-Family HCF
• Propagation-Delay-Time 140 ns
• High-Level-Output-Current - 3.2 mA
• Low-Level-Output-Current 3 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 2 Output
• Logic-Function OR
