GN2470K4-G

GN2470K4-G Overview

Product belongs to the - series. Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: TO-252 Configuration Single Maximum current collector Ic is 1A . Maximum collector-emitter breakdown voltage of 700V The Current-Collector-Pulsed-Icm is rated at 3.5A. The Vce-on-Max-Vge-Ic is rated at 5V @ 13V, 3A. 8ns/20ns Td-on-off at 25°C; Operating temperature: - Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 700 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 1 A Collector Current of Continuity;

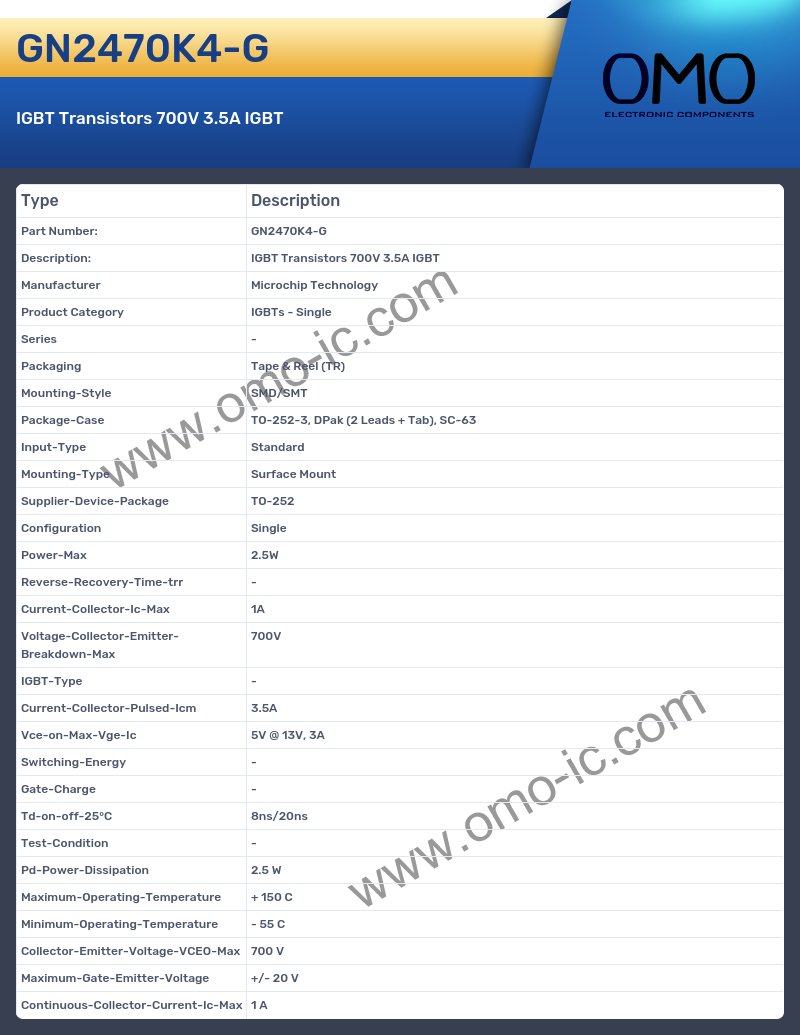

GN2470K4-G Image

GN2470K4-G Specifications

• Manufacturer Microchip Technology
• Product Category IGBTs - Single
• Series -
• Packaging Tape & Reel (TR)
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package TO-252
• Configuration Single
• Power-Max 2.5W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 1A
• Voltage-Collector-Emitter-Breakdown-Max 700V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 3.5A
• Vce-on-Max-Vge-Ic 5V @ 13V, 3A
• Switching-Energy -
• Gate-Charge -
• Td-on-off-25°C 8ns/20ns
• Test-Condition -
• Pd-Power-Dissipation 2.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 700 V
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 1 A
