ESDAVLC8-1BM2

ESDAVLC8-1BM2 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. SOD-882 Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 1 Channel Supplier device package: SOD-882 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 8.5V. No Power-Line-Protection 4.5pF @ 1MHz Capacitance-Frequency Power-off control: 30 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Breakdown-Voltage: 8.5 V The Cd-Diode-Capacitance is 4.5 pF 3 V working voltage Polarity: Bidirectional 1.3 A of IPP, Peak Pulse, and Current 17 kV of Vesd-Voltage-ESD-Contact 17 kV Vesd-Voltage-ESD-Air-Gap

ESDAVLC8-1BM2 Image

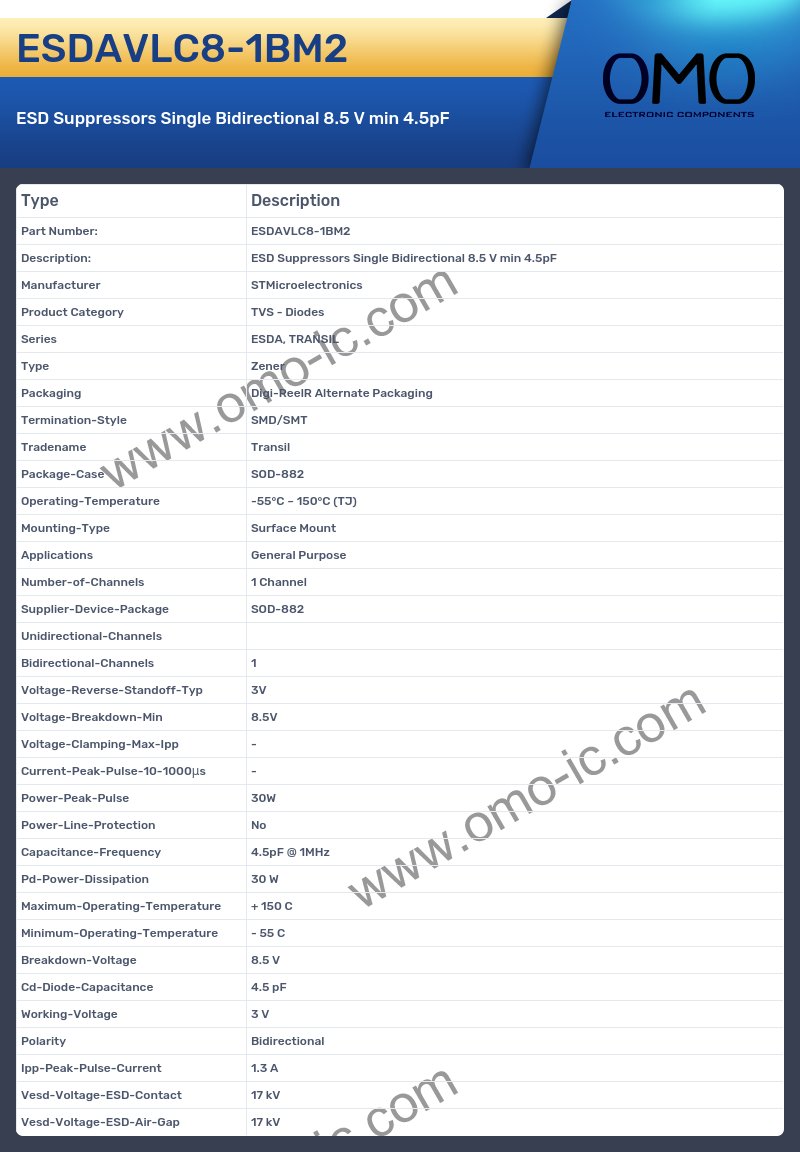

ESDAVLC8-1BM2 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case SOD-882
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOD-882
• Unidirectional-Channels
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 8.5V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 30W
• Power-Line-Protection No
• Capacitance-Frequency 4.5pF @ 1MHz
• Pd-Power-Dissipation 30 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 8.5 V
• Cd-Diode-Capacitance 4.5 pF
• Working-Voltage 3 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 1.3 A
• Vesd-Voltage-ESD-Contact 17 kV
• Vesd-Voltage-ESD-Air-Gap 17 kV
