ESDA6V1-5W6

ESDA6V1-5W6 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. The Height of the product is 1.1 mm. 2.2 mm length of the product The 2.4 mm is at most 7.6 mm. 6-TSSOP, SC-88, SOT-363 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 5 Channel Supplier device package: SOT-323-6L Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6.1V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 100 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 7.2 V The Cd-Diode-Capacitance is 50 pF 3 V working voltage Polarity: Unidirectional

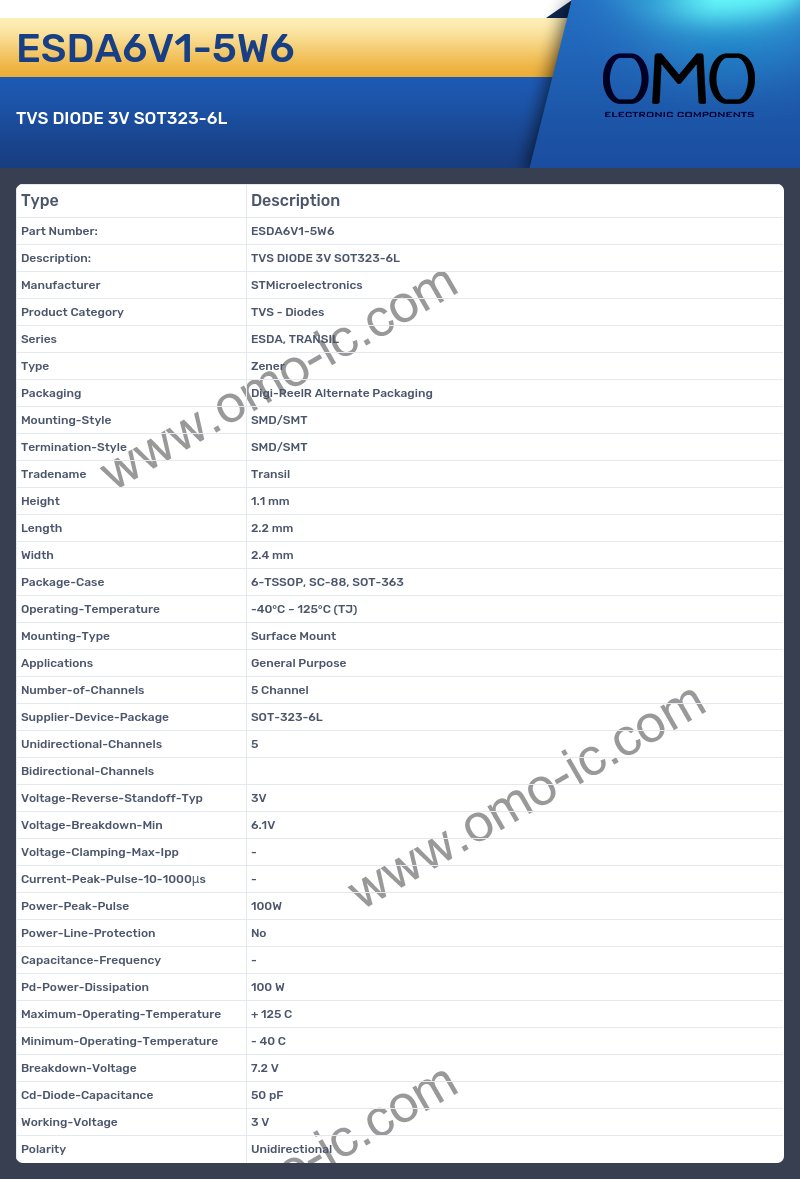

ESDA6V1-5W6 Image

ESDA6V1-5W6 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Height 1.1 mm
• Length 2.2 mm
• Width 2.4 mm
• Package-Case 6-TSSOP, SC-88, SOT-363
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 5 Channel
• Supplier-Device-Package SOT-323-6L
• Unidirectional-Channels 5
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6.1V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 100W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 100 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 7.2 V
• Cd-Diode-Capacitance 50 pF
• Working-Voltage 3 V
• Polarity Unidirectional
