ESDA5V3SC6Y

ESDA5V3SC6Y Overview

Product belongs to the Automotive, AEC-Q101, ESDAY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. The Height of the product is 3 mm. 3.05 mm length of the product The 1.75 mm is at most 7.6 mm. SOT-23-6 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Supplier device package: SOT-23-6 - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 5.3V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 400 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 5.3 V Clamping-Voltage: 18 V 22 A Peak Surge Current The Cd-Diode-Capacitance is 280 pF 3 V working voltage Polarity: Unidirectional

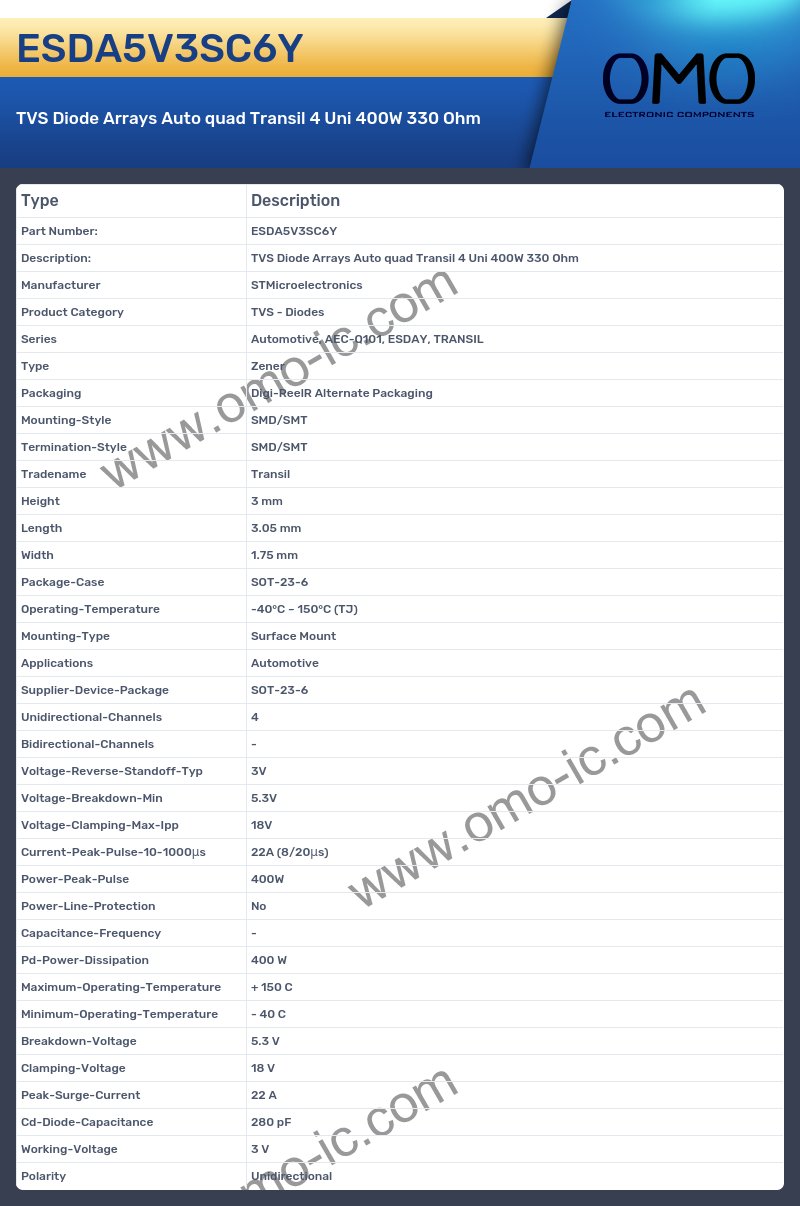

ESDA5V3SC6Y Image

ESDA5V3SC6Y Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, ESDAY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Height 3 mm
• Length 3.05 mm
• Width 1.75 mm
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Supplier-Device-Package SOT-23-6
• Unidirectional-Channels 4
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 5.3V
• Voltage-Clamping-Max-Ipp 18V
• Current-Peak-Pulse-10-1000μs 22A (8/20μs)
• Power-Peak-Pulse 400W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 400 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 5.3 V
• Clamping-Voltage 18 V
• Peak-Surge-Current 22 A
• Cd-Diode-Capacitance 280 pF
• Working-Voltage 3 V
• Polarity Unidirectional
