DRV8870DDAR

DRV8870DDAR Overview

Product belongs to the DRV8870 series. This product is categorized as Brushed DC Motor Drivers Type: Half Bridge Motor Driver Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications HSOP-8 NMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile DC Motors, General Purpose, Stepper Motors applications for maximum usability Interface: PWM Voltage Supply Range: 0 V ~ 5.5 V Supplier device package: 8-SO PowerPad Number-of-Outputs: 2 Output Current-Output-Channel is - The Half Bridge (2). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 565 mOhm LS + HS. The product's 3.6A is 4A. Voltage-Load range is 6.5 V ~ 45 V. This product operates at a 6.5 V to 45 V supply voltage for reliable performance. 3 mA is 92 nA. The operating frequency is 100 kHz. Output current: 3.6 A

DRV8870DDAR Image

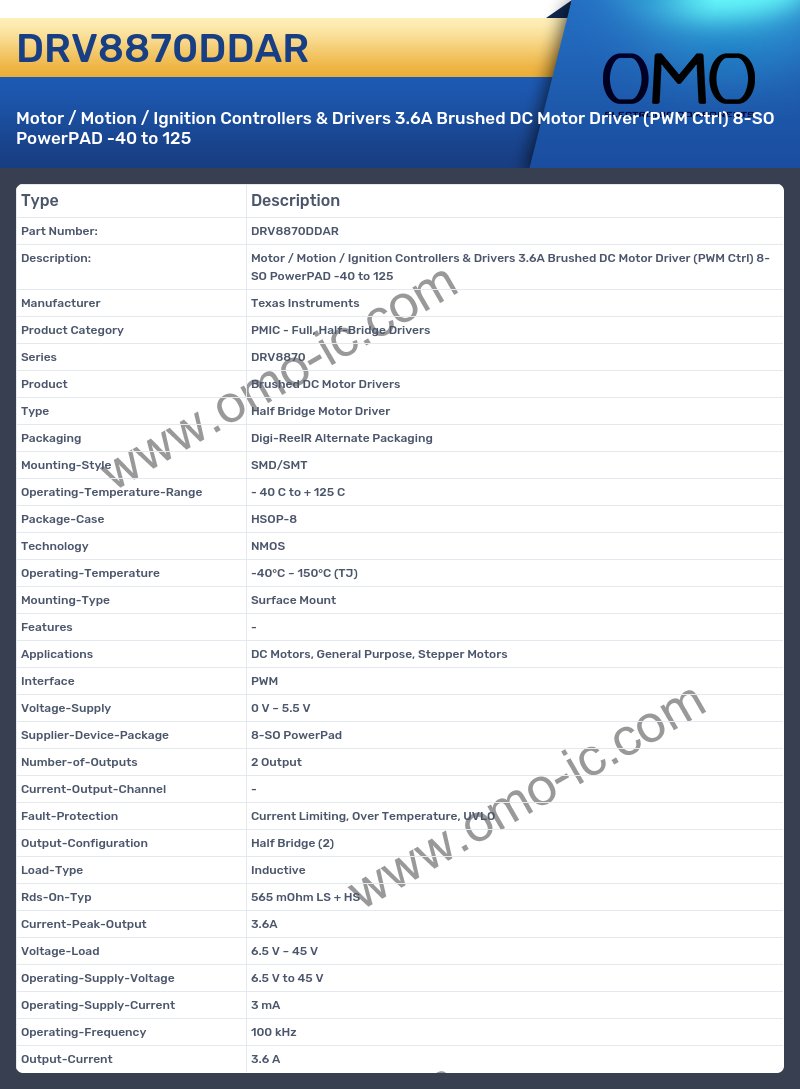

DRV8870DDAR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Full, Half-Bridge Drivers
• Series DRV8870
• Product Brushed DC Motor Drivers
• Type Half Bridge Motor Driver
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case HSOP-8
• Technology NMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features -
• Applications DC Motors, General Purpose, Stepper Motors
• Interface PWM
• Voltage-Supply 0 V ~ 5.5 V
• Supplier-Device-Package 8-SO PowerPad
• Number-of-Outputs 2 Output
• Current-Output-Channel -
• Fault-Protection Current Limiting, Over Temperature, UVLO
• Output-Configuration Half Bridge (2)
• Load-Type Inductive
• Rds-On-Typ 565 mOhm LS + HS
• Current-Peak-Output 3.6A
• Voltage-Load 6.5 V ~ 45 V
• Operating-Supply-Voltage 6.5 V to 45 V
• Operating-Supply-Current 3 mA
• Operating-Frequency 100 kHz
• Output-Current 3.6 A
