DDC316CGXGT Overview

Product belongs to the DDC316 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style NFBGA-64 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 16 Channel Supplier device package: 64-NFBGA (8x8) This product's 100k. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration ADC The architecture of this product is SAR . External is the reference type. 4 units Power-off control: 640 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial interface type Number-of-Converters: 16 Converter 100 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: 16 LSB

DDC316CGXGT Image

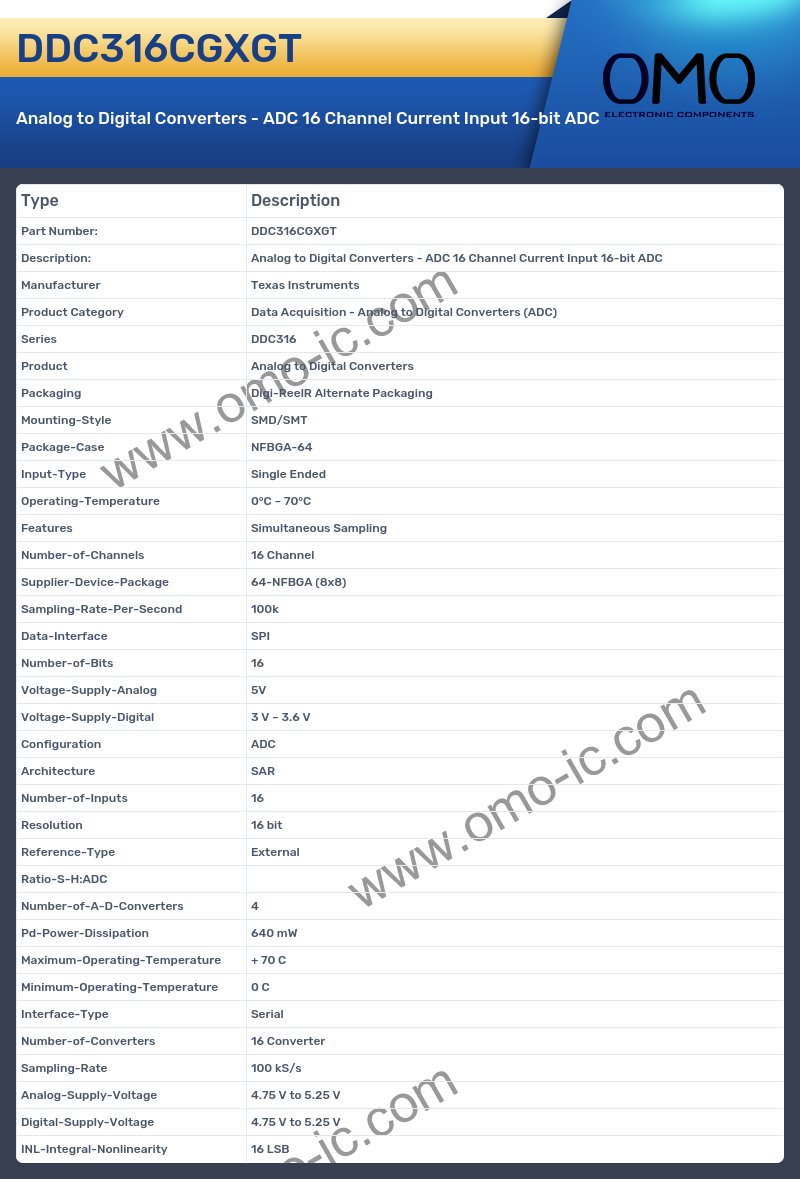

DDC316CGXGT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series DDC316
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case NFBGA-64
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features Simultaneous Sampling
• Number-of-Channels 16 Channel
• Supplier-Device-Package 64-NFBGA (8x8)
• Sampling-Rate-Per-Second 100k
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 16
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 4
• Pd-Power-Dissipation 640 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial
• Number-of-Converters 16 Converter
• Sampling-Rate 100 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity 16 LSB
