DAC8562FS-REEL

DAC8562FS-REEL Overview

Product belongs to the DAC8562 series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product 20-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 20-SOIC W Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 16μs (Typ) is an impressive 15 us. No Differential-Output

DAC8562FS-REEL Image

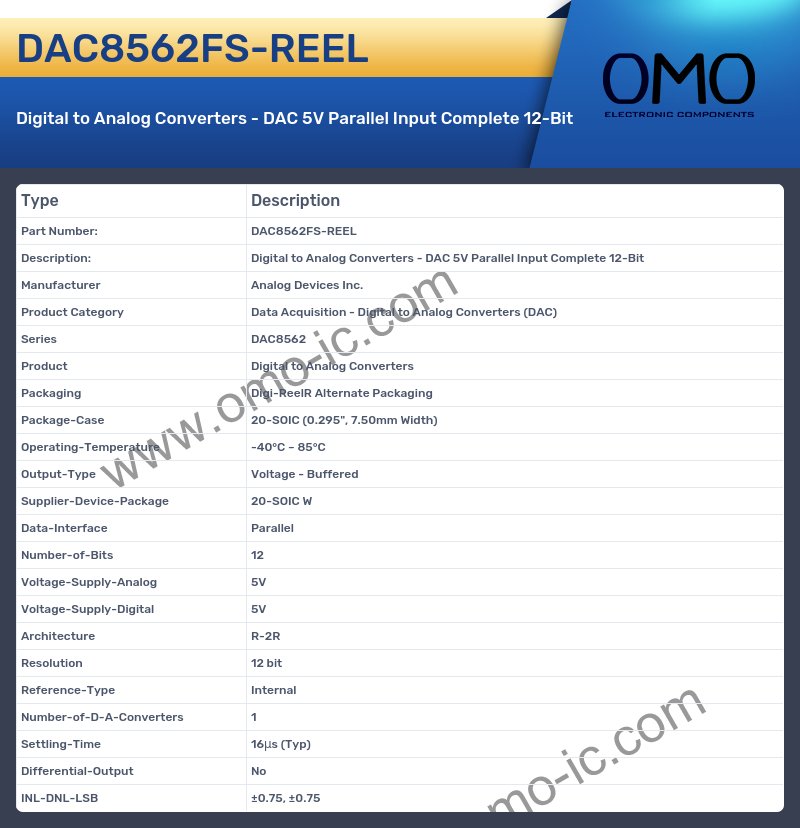

DAC8562FS-REEL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8562
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 20-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 20-SOIC W
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 16μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.75, ±0.75
