DAC8426FPZ

DAC8426FPZ Overview

Product belongs to the DAC8426 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.079719 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 20-PDIP Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 13.5 V ~ 16.5 V. The Voltage Supply Digital for this product is 13.5 V ~ 16.5 V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 4 The 3μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 210 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 6 mA is 92 nA. Parallel interface type Maximum supply voltage of 16.5 V Minimum supply voltage is 13.5 V Number-of-Converters: 4 Converter 333 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Reference voltage is 10 V .

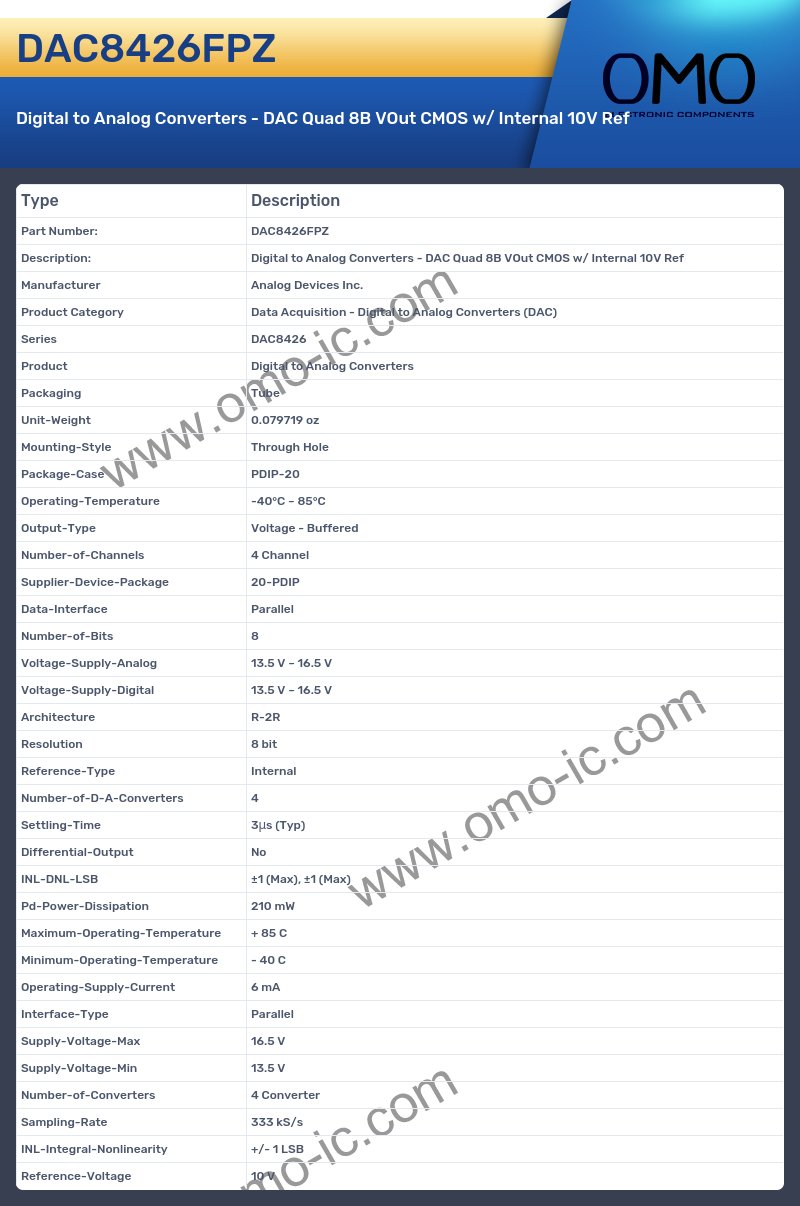

DAC8426FPZ Image

DAC8426FPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8426
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.079719 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 20-PDIP
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 13.5 V ~ 16.5 V
• Voltage-Supply-Digital 13.5 V ~ 16.5 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type Internal
• Number-of-D-A-Converters 4
• Settling-Time 3μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Pd-Power-Dissipation 210 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 6 mA
• Interface-Type Parallel
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 13.5 V
• Number-of-Converters 4 Converter
• Sampling-Rate 333 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• Reference-Voltage 10 V
