DAC8420FPZ Overview

Product belongs to the DAC8420 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 16-PDIP Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5 V ~ 15 V, -15V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 13μs (Typ) is an impressive 15 us. No Differential-Output

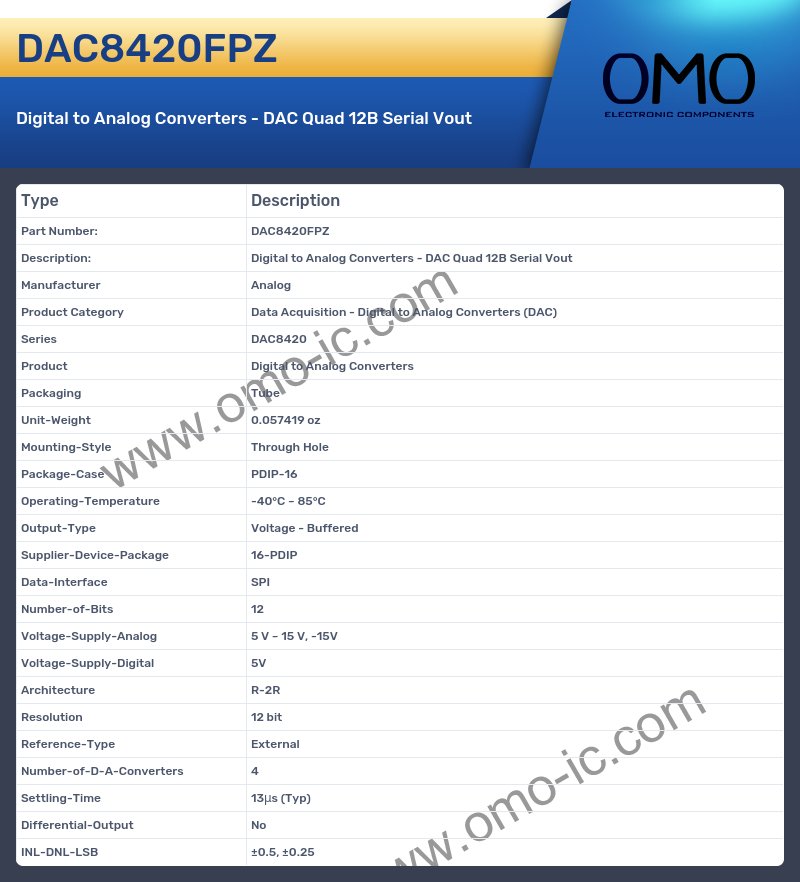

DAC8420FPZ Image

DAC8420FPZ Specifications

• Manufacturer Analog
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8420
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.057419 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 16-PDIP
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 15 V, -15V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 13μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.5, ±0.25
