DAC8420ES Overview

Product belongs to the DAC8420 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 16-SOIC Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5 V ~ 15 V, -15V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 13μs (Typ) is an impressive 15 us. No Differential-Output

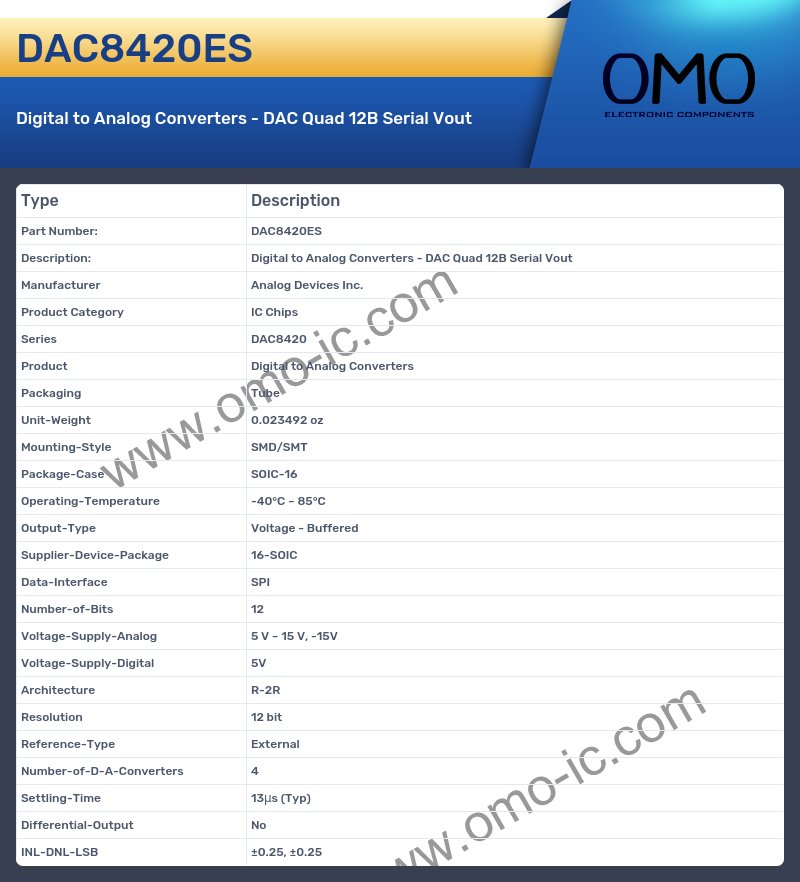

DAC8420ES Image

DAC8420ES Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series DAC8420
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 16-SOIC
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 15 V, -15V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 13μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.25, ±0.25
