DAC8412FP

DAC8412FP Overview

Product belongs to the DAC8412 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube is the packaging method for this product Weight of 0.147798 oz Through Hole Mounting-Style PDIP-28 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 28-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5 V ~ 15 V, -15V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 10μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 330 mW

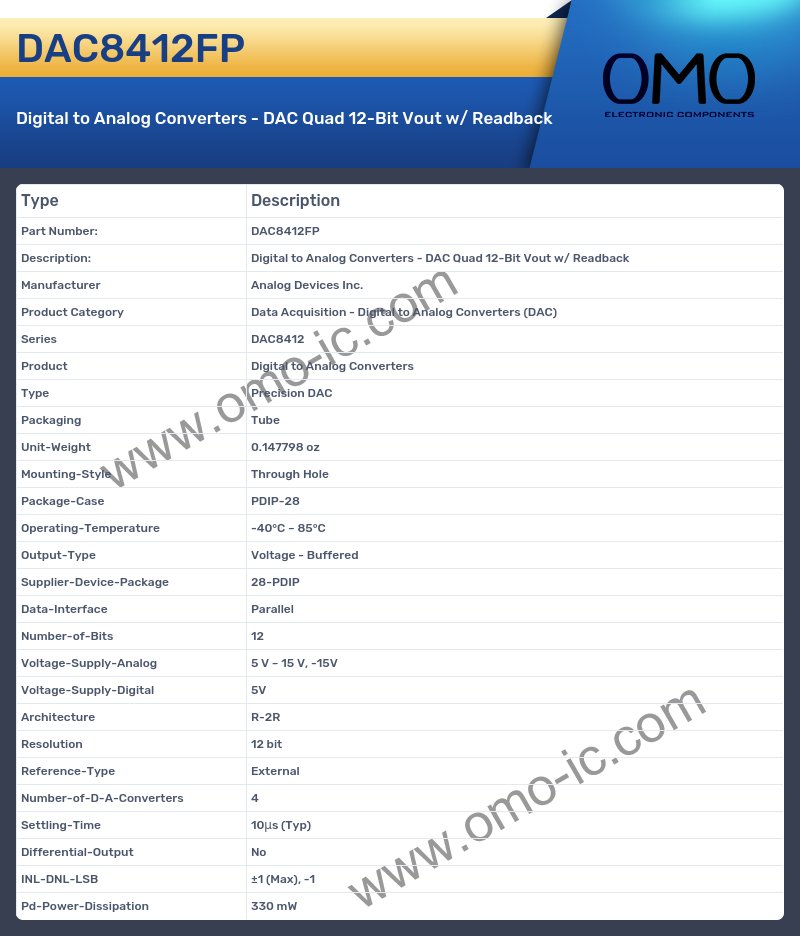

DAC8412FP Image

DAC8412FP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8412
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tube
• Unit-Weight 0.147798 oz
• Mounting-Style Through Hole
• Package-Case PDIP-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 28-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 15 V, -15V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±1 (Max), -1
• Pd-Power-Dissipation 330 mW
