DAC7718SPAG

DAC7718SPAG Overview

Product belongs to the DAC7718 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tray Alternate Packaging is the packaging method for this product Weight of 0.012720 oz SMD/SMT Mounting-Style TQFP-64 Operational temperature range: -40°C ~ 105°C Output-Type: Voltage - Buffered Number of channels: 8 Channel Supplier device package: 64-TQFP (10x10) Data-Interface: SPI 12 bits The Voltage-Supply-Analog is ±4.5 V ~ 18 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 8 The 15μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type The DAC7718EVM. Maximum supply voltage of 36 V Minimum supply voltage is 9 V Number-of-Converters: 8 Converter

DAC7718SPAG Image

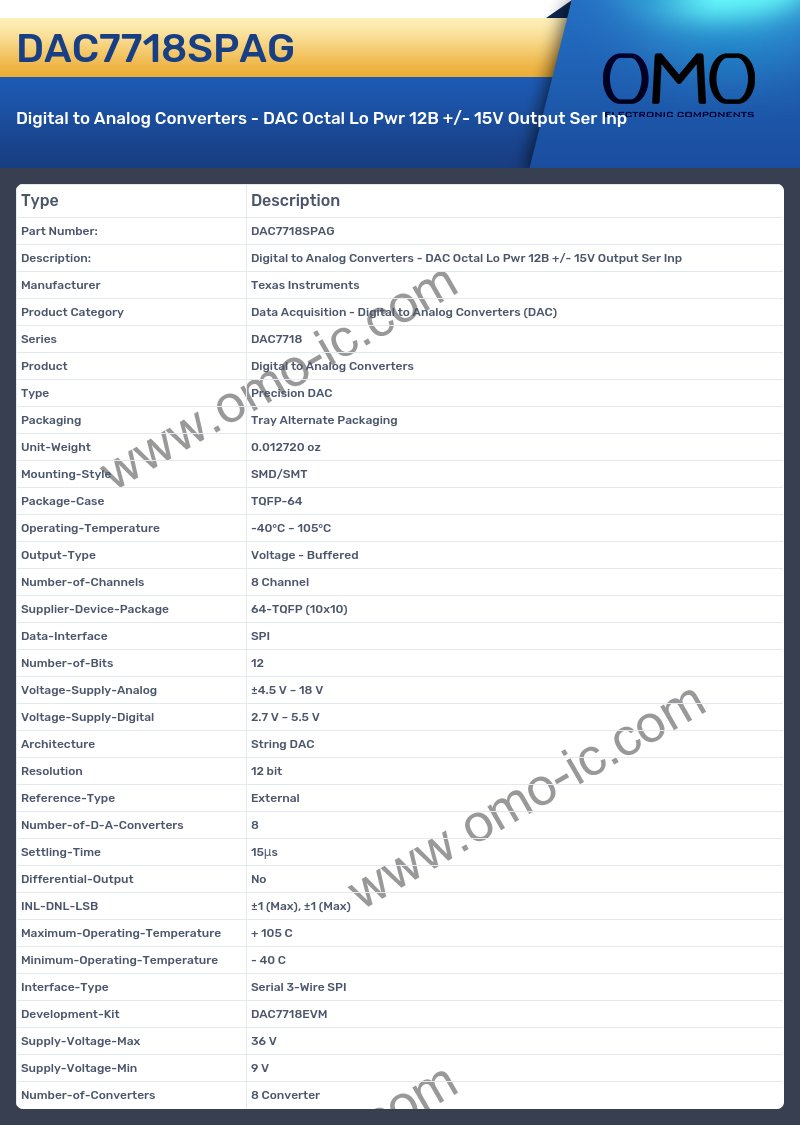

DAC7718SPAG Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7718
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tray Alternate Packaging
• Unit-Weight 0.012720 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-64
• Operating-Temperature -40°C ~ 105°C
• Output-Type Voltage - Buffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 64-TQFP (10x10)
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog ±4.5 V ~ 18 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 15μs
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Development-Kit DAC7718EVM
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 9 V
• Number-of-Converters 8 Converter
