DAC715UB Overview

Product belongs to the DAC715 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 28-SOIC Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 10μs is an impressive 15 us. No Differential-Output Power-off control: 600 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of +/- 16.5 V Minimum supply voltage is +/- 11.4 V Number-of-Converters: 1 Converter 100 kS/s Sampling Rate Integral Nonlinearity: 4 LSB Differential nonlinearity: 4 LSB

DAC715UB Image

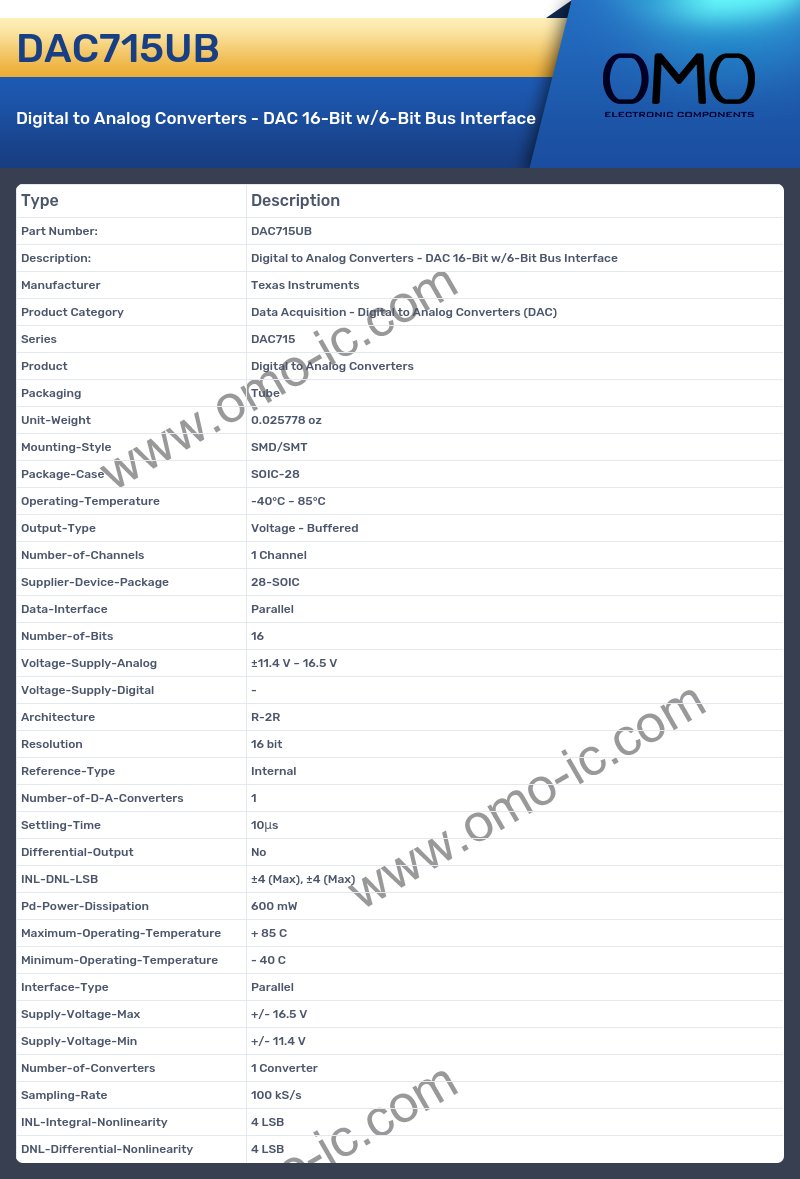

DAC715UB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC715
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 16 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 10μs
• Differential-Output No
• INL-DNL-LSB ±4 (Max), ±4 (Max)
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max +/- 16.5 V
• Supply-Voltage-Min +/- 11.4 V
• Number-of-Converters 1 Converter
• Sampling-Rate 100 kS/s
• INL-Integral-Nonlinearity 4 LSB
• DNL-Differential-Nonlinearity 4 LSB
