DAC2904Y/250

DAC2904Y/250 Overview

Product belongs to the DAC2904 series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004847 oz SMD/SMT Mounting-Style TQFP-48 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 48-TQFP (7x7) Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 3 V ~ 5.5 V. The Voltage Supply Digital for this product is 3 V ~ 5.5 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 2 The 30μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 68 dB The DAC2904-EVM. Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V Number-of-Converters: 2 Converter 125 MS/s Sampling Rate

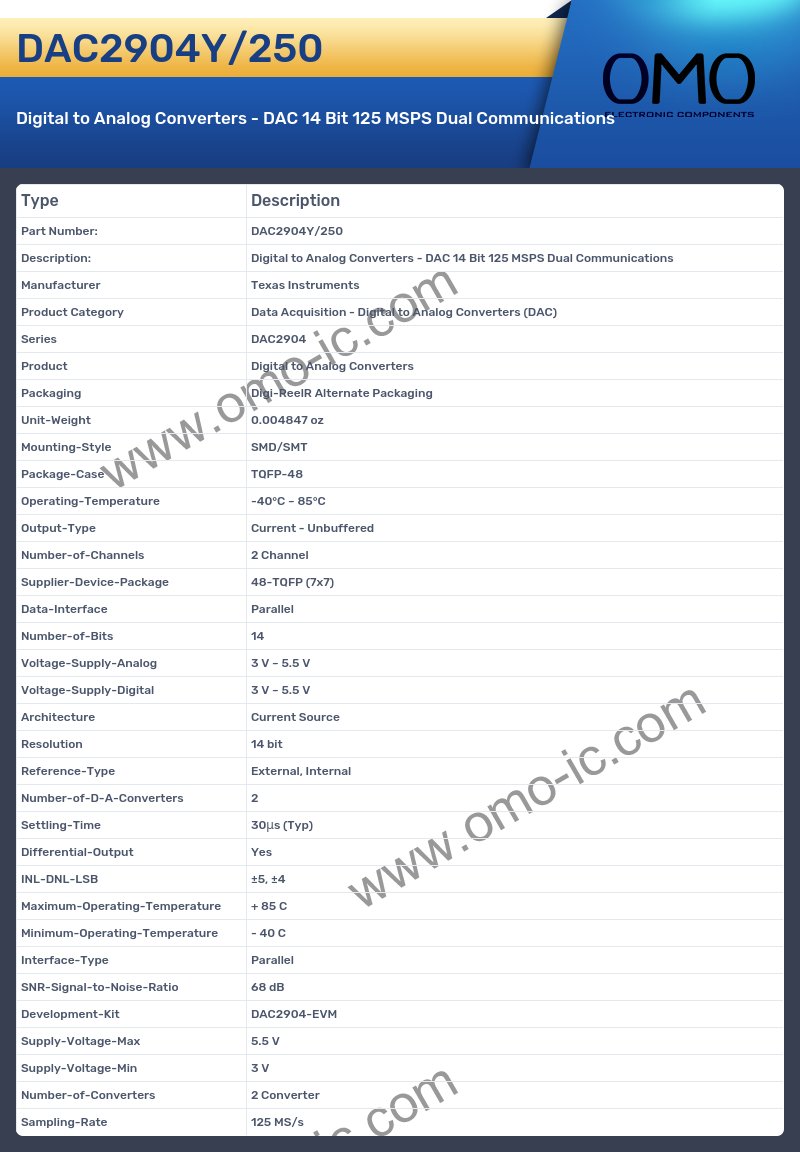

DAC2904Y/250 Image

DAC2904Y/250 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC2904
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004847 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-48
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 48-TQFP (7x7)
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3 V ~ 5.5 V
• Voltage-Supply-Digital 3 V ~ 5.5 V
• Architecture Current Source
• Resolution 14 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 30μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±5, ±4
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 68 dB
• Development-Kit DAC2904-EVM
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 2 Converter
• Sampling-Rate 125 MS/s
