CSD97370 Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. LSON-22 Clip Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Synchronous Buck Converters applications for maximum usability Interface: PWM Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 22-LSON (5x6) Configuration PowerStage Current-Output-Channel is 40A The Half Bridge. This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The -. The product's 60A is 4A. Voltage-Load range is 3.3 V ~ 22 V. Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C

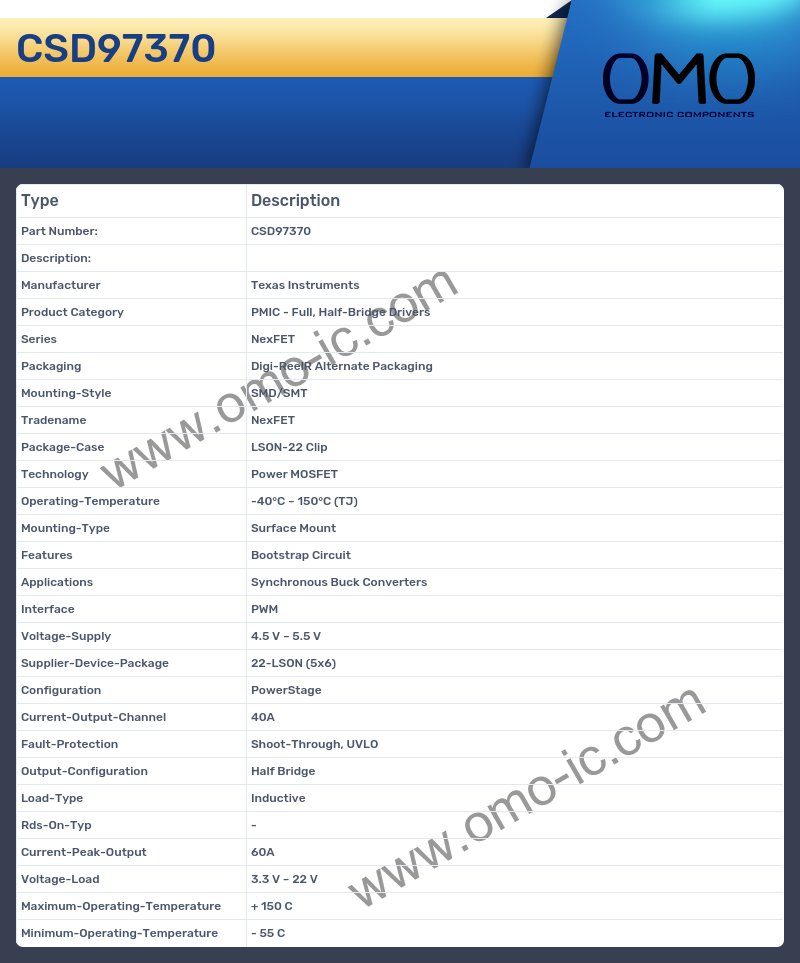

CSD97370 Image

CSD97370 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Full, Half-Bridge Drivers
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case LSON-22 Clip
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit
• Applications Synchronous Buck Converters
• Interface PWM
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 22-LSON (5x6)
• Configuration PowerStage
• Current-Output-Channel 40A
• Fault-Protection Shoot-Through, UVLO
• Output-Configuration Half Bridge
• Load-Type Inductive
• Rds-On-Typ -
• Current-Peak-Output 60A
• Voltage-Load 3.3 V ~ 22 V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
