Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. 5-LGA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 5-PTAB (5x3.5) Configuration PowerBlock This product uses an 2 N-Channel (Half Bridge) FET-Type transistor. 30V This product has an 1150pF @ 15V value of 300pF @ 25V. This product's Logic Level Gate. 30A continuous drain-ID current at 25°C; This product has an 7.7 mOhm @ 25A, 8V of 12 Ohm @ 150mA, 0V. Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 7.6 ns 8.2 ns of 16 ns. This product has a 49 ns 56 ns of 16 ns. The CSD87384MEVM-603.

CSD87384M Image

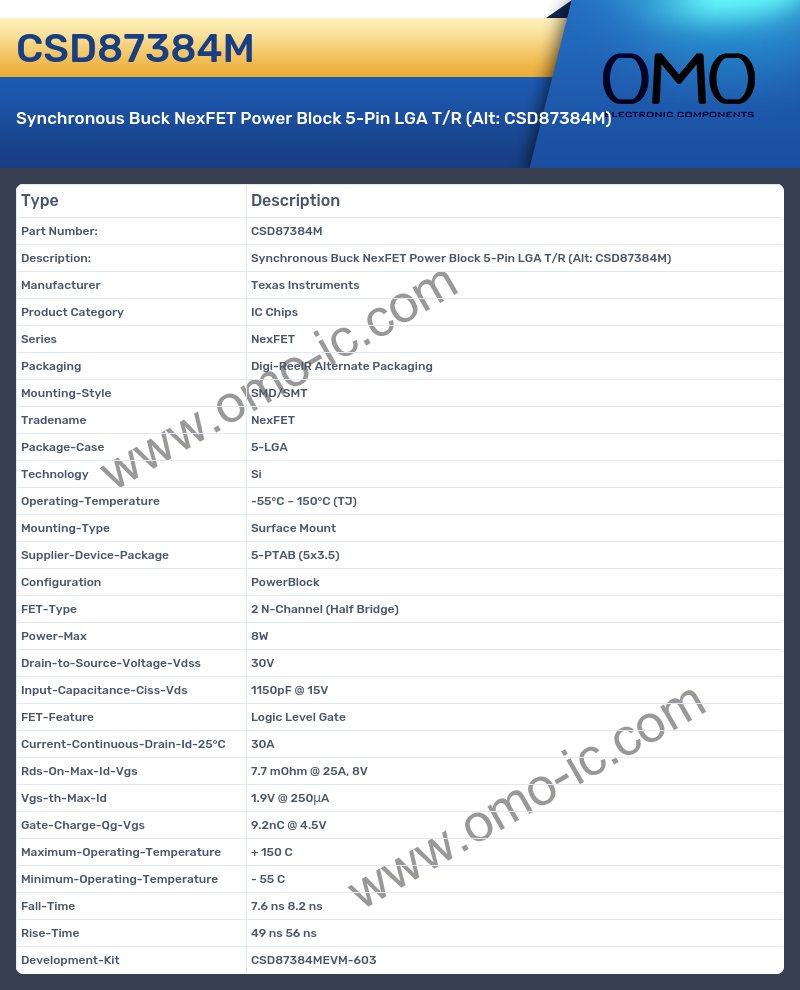

CSD87384M Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 5-LGA
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 5-PTAB (5x3.5)
• Configuration PowerBlock
• FET-Type 2 N-Channel (Half Bridge)
• Power-Max 8W
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 1150pF @ 15V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 30A
• Rds-On-Max-Id-Vgs 7.7 mOhm @ 25A, 8V
• Vgs-th-Max-Id 1.9V @ 250μA
• Gate-Charge-Qg-Vgs 9.2nC @ 4.5V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 7.6 ns 8.2 ns
• Rise-Time 49 ns 56 ns
• Development-Kit CSD87384MEVM-603
