CSD87331Q3D Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. 8-PowerLDFN Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 8-LSON (5x6) Configuration Dual This product uses an 2 N-Channel (Half Bridge) FET-Type transistor. Transistor type: 2 N-Channel 30V This product has an 518pF @ 15V value of 300pF @ 25V. This product's Standard. 15A continuous drain-ID current at 25°C; This product has an - of 12 Ohm @ 150mA, 0V. Power-off control: 6 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 1.3 ns 2.4 ns of 16 ns. This product has a 4.5 ns 4.7 ns of 16 ns. This product's 10 V. The ID of continuous drain current is 15 A 15 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V 30 V. The 18 mOhms 5.5 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 7.4 ns 11.2 ns This product has a 3.4 ns 3.8 ns. Qg-Gate-Charge is 2.7 nC 6.4 nC. This product features a 48 S / 26 S of 500 S for high performance.

CSD87331Q3D Image

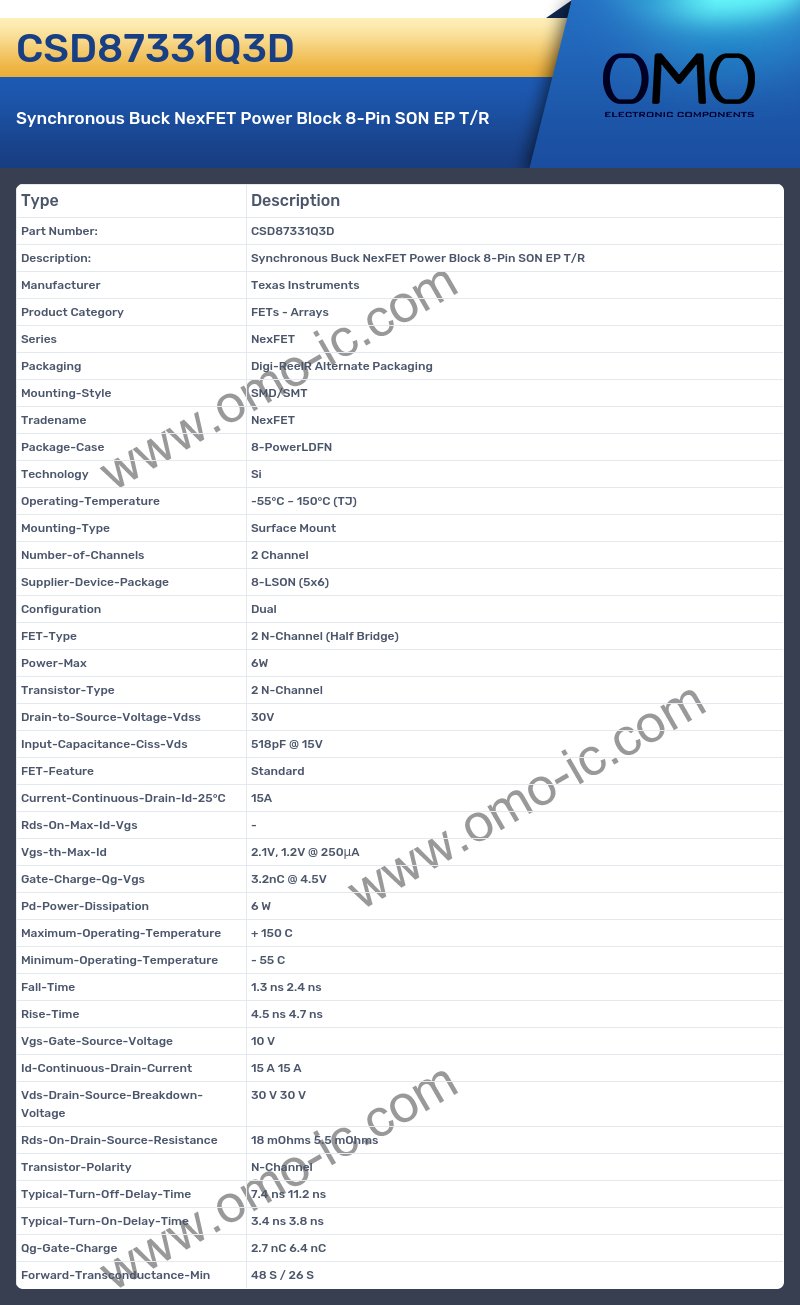

CSD87331Q3D Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Arrays
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 8-PowerLDFN
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-LSON (5x6)
• Configuration Dual
• FET-Type 2 N-Channel (Half Bridge)
• Power-Max 6W
• Transistor-Type 2 N-Channel
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 518pF @ 15V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 15A
• Rds-On-Max-Id-Vgs -
• Vgs-th-Max-Id 2.1V, 1.2V @ 250μA
• Gate-Charge-Qg-Vgs 3.2nC @ 4.5V
• Pd-Power-Dissipation 6 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 1.3 ns 2.4 ns
• Rise-Time 4.5 ns 4.7 ns
• Vgs-Gate-Source-Voltage 10 V
• Id-Continuous-Drain-Current 15 A 15 A
• Vds-Drain-Source-Breakdown-Voltage 30 V 30 V
• Rds-On-Drain-Source-Resistance 18 mOhms 5.5 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 7.4 ns 11.2 ns
• Typical-Turn-On-Delay-Time 3.4 ns 3.8 ns
• Qg-Gate-Charge 2.7 nC 6.4 nC
• Forward-Transconductance-Min 48 S / 26 S
