CSD85301Q2 Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style Trade name: NexFET. 6-WDFN Exposed Pad Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 6-WSON (2x2) This product uses an 2 N-Channel (Dual) FET-Type transistor. Transistor type: 2 N-Channel 20V This product has an 469pF @ 10V value of 300pF @ 25V. This product's Logic Level Gate, 5V Drive. 5A continuous drain-ID current at 25°C; This product has an 27 mOhm @ 5A, 4.5V of 12 Ohm @ 150mA, 0V. The transistor polarity is N-Channel.

CSD85301Q2 Image

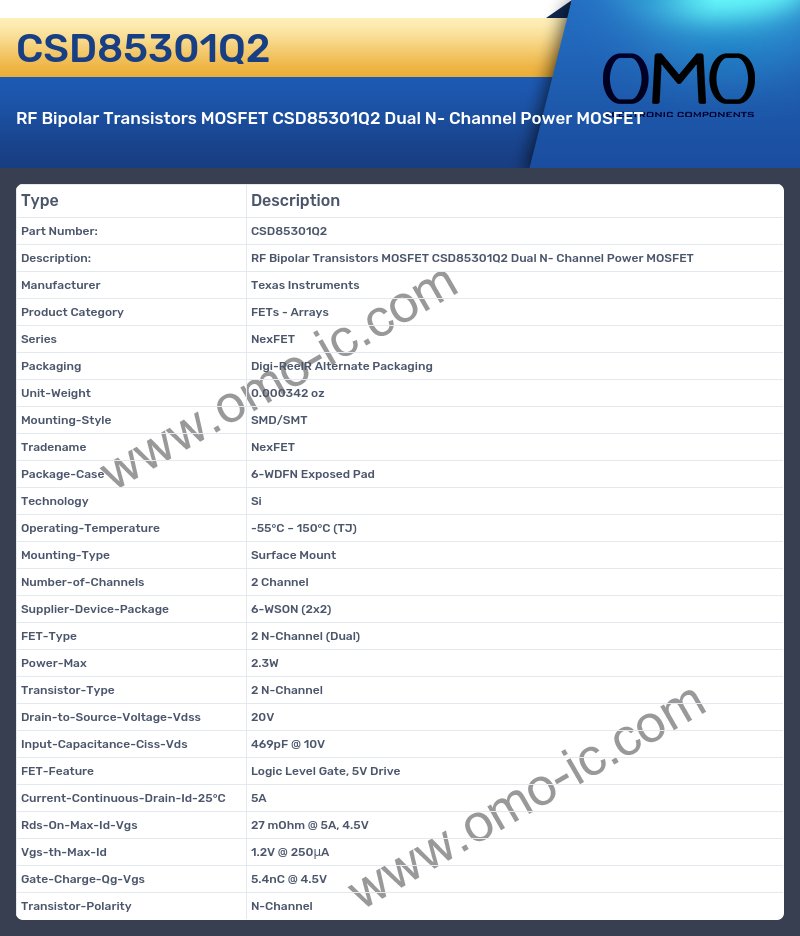

CSD85301Q2 Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Arrays
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 6-WDFN Exposed Pad
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package 6-WSON (2x2)
• FET-Type 2 N-Channel (Dual)
• Power-Max 2.3W
• Transistor-Type 2 N-Channel
• Drain-to-Source-Voltage-Vdss 20V
• Input-Capacitance-Ciss-Vds 469pF @ 10V
• FET-Feature Logic Level Gate, 5V Drive
• Current-Continuous-Drain-Id-25°C 5A
• Rds-On-Max-Id-Vgs 27 mOhm @ 5A, 4.5V
• Vgs-th-Max-Id 1.2V @ 250μA
• Gate-Charge-Qg-Vgs 5.4nC @ 4.5V
• Transistor-Polarity N-Channel
