| Mfr. #: | CSD19506KCS |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Darlington Transistors MOSFET 80V N-CH Power MOSFET |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | CSD19506KCS Scheda dati |
Product belongs to the CSD19506KCS series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style Trade name: NexFET. TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 375 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 10 ns of 16 ns. This product has a 11 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 273 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 80 V. This product has a 2.5 V Vgs-th gate-source threshold voltage for efficient power management. The 2.2 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 30 ns This product has a 19 ns. Qg-Gate-Charge is 120 nC. This product features a 297 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

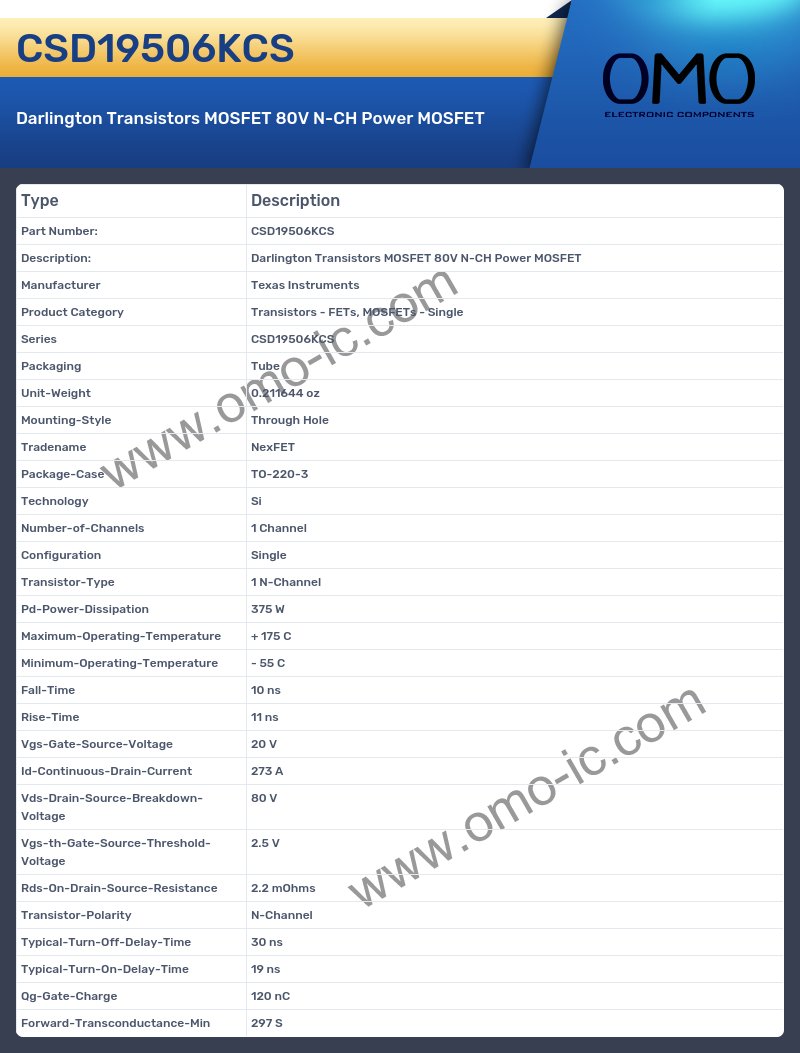

CSD19506KCS Specifications
