CSD17309Q3

CSD17309Q3 Overview

Product belongs to the CSD17309Q3 series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. VSON-Clip-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 2.8 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 3.6 ns of 16 ns. This product has a 9.9 ns of 16 ns. This product's 10 V. The ID of continuous drain current is 20 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1.2 V Vgs-th gate-source threshold voltage for efficient power management. The 6.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 7.5 nC.

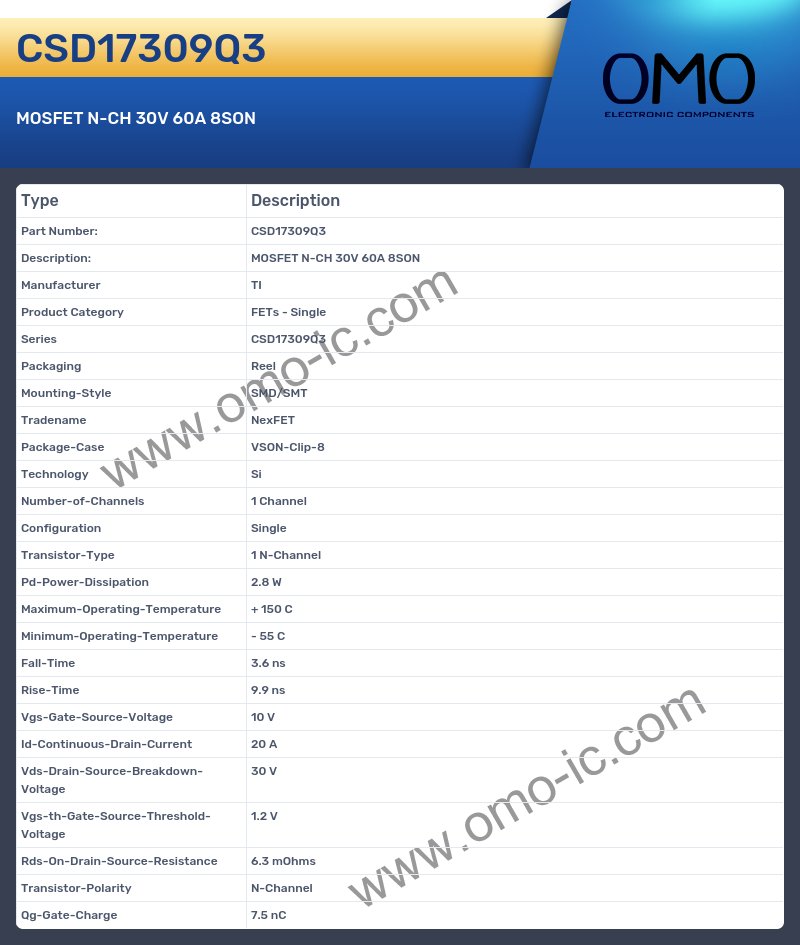

CSD17309Q3 Image

CSD17309Q3 Specifications

• Manufacturer TI
• Product Category FETs - Single
• Series CSD17309Q3
• Packaging Reel
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case VSON-Clip-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 2.8 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 3.6 ns
• Rise-Time 9.9 ns
• Vgs-Gate-Source-Voltage 10 V
• Id-Continuous-Drain-Current 20 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Vgs-th-Gate-Source-Threshold-Voltage 1.2 V
• Rds-On-Drain-Source-Resistance 6.3 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 7.5 nC
