CSD17302

CSD17302 Overview

Product belongs to the CSD17302Q5A series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. VSON-FET-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 3 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's 10 V. The ID of continuous drain current is 16 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1.2 V Vgs-th gate-source threshold voltage for efficient power management. The 9 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 10.6 ns This product has a 5.2 ns. Qg-Gate-Charge is 5.4 nC. This product features a 68 S of 500 S for high performance.

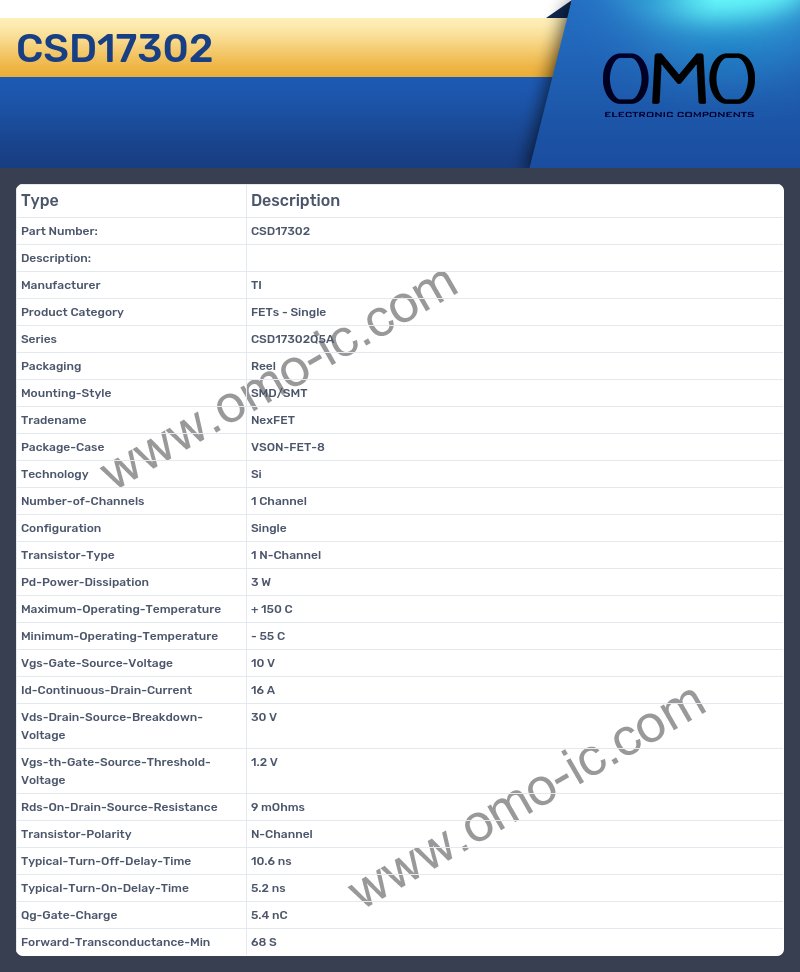

CSD17302 Image

CSD17302 Specifications

• Manufacturer TI
• Product Category FETs - Single
• Series CSD17302Q5A
• Packaging Reel
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case VSON-FET-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 3 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage 10 V
• Id-Continuous-Drain-Current 16 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Vgs-th-Gate-Source-Threshold-Voltage 1.2 V
• Rds-On-Drain-Source-Resistance 9 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 10.6 ns
• Typical-Turn-On-Delay-Time 5.2 ns
• Qg-Gate-Charge 5.4 nC
• Forward-Transconductance-Min 68 S
