| Mfr. #: | CD4016BPW |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Analog Switch ICs CMOS Quad Bilateral Switch |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | CD4016BPW Scheda dati |
Product belongs to the 4000B series. Type: Bilateral, FET Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.002018 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-TSSOP Voltage supply source: Analog and digital Dual Supply Configuration 4 x SPST Circuit type: 1 x 1:1 4 Independent Circuit Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 18 V supply voltage for reliable performance. Maximum supply current: 5 uA Maximum supply voltage of 18 V Minimum supply voltage is 3 V Single Supply Dual Supply supply type Max on-resistance of 850 Ohms 4 Switch switch functionality Maximum on-time: 30 ns The maximum switch voltage for this product is 15 V The +/- 10 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

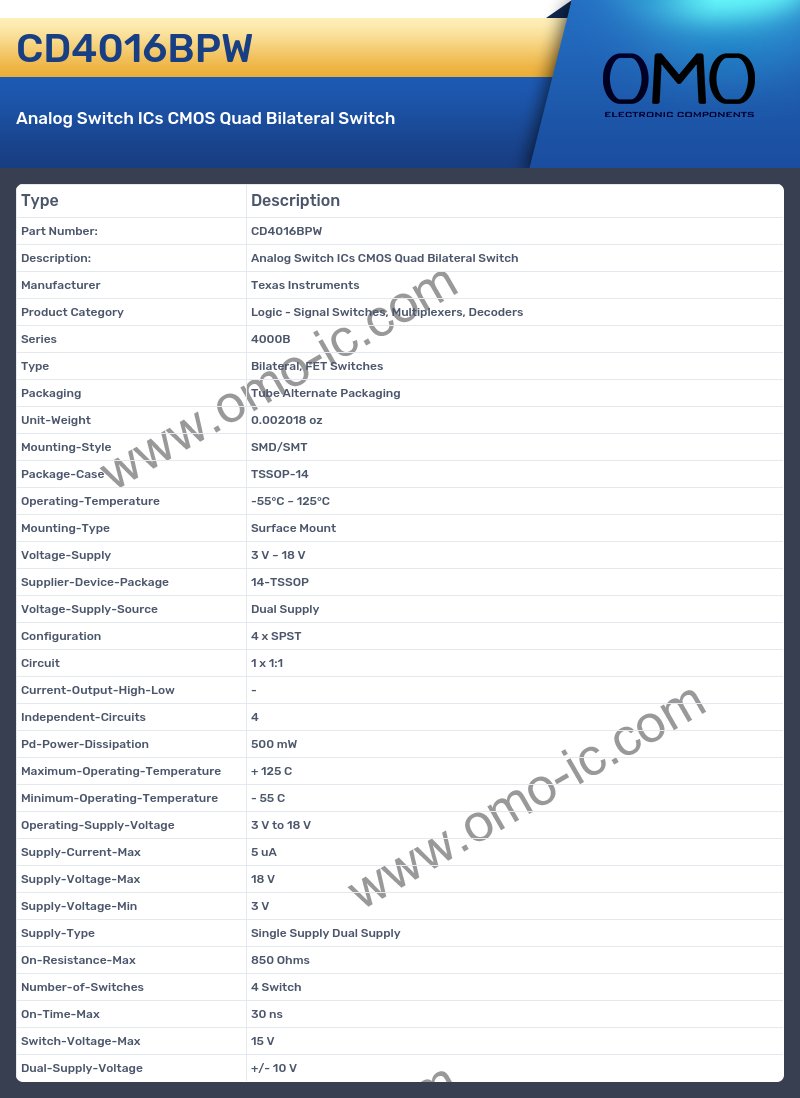

CD4016BPW Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 4000B
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed Bilateral, FET Switches
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.002018 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TSSOP-14.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 125°C
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 3 V ~ 18 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 14-TSSOP.
A: At what frequency does the Voltage-Supply-Source?
Q: The product Voltage-Supply-Source is Dual Supply.
A: What is the Configuration of the product?
Q: The Configuration of the product is 4 x SPST.
A: What is the Circuit of the product?
Q: The Circuit of the product is 1 x 1:1.
A: Is the cutoff frequency of the product Independent-Circuits?
Q: Yes, the product's Independent-Circuits is indeed 4
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 500 mW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 3 V to 18 V
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 5 uA.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 18 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 3 V.
A: What is the Supply-Type of the product?
Q: The Supply-Type of the product is Single Supply Dual Supply.
A: At what frequency does the On-Resistance-Max?
Q: The product On-Resistance-Max is 850 Ohms.
A: What is the Number-of-Switches of the product?
Q: The Number-of-Switches of the product is 4 Switch.
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 30 ns.
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: Is the cutoff frequency of the product Dual-Supply-Voltage?
Q: Yes, the product's Dual-Supply-Voltage is indeed +/- 10 V
